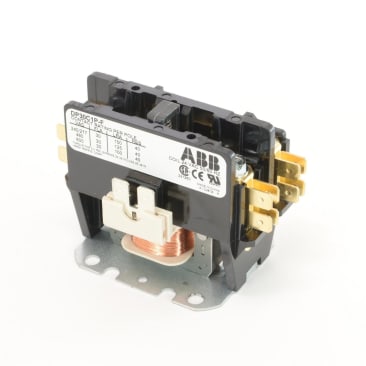

ABB DP30C1P-F DP CONTACTOR 1P 30A 24VAC
Product Details
Attributes
Features
Resources
ABB Definite Purpose Contactor, Non-Reversing, 24 V AC Coil, 30 A Maximum Load Current, 2 hp Coil, 1 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 2 Auxiliary Contacts, SZ 30 Size, Screw Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, DIN Rail Mounting, 2.44 in L x 2 in W x 3.3 in H Dimensions
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips® 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- 1 hp at 120 VAC 1-phase, 2 hp at 240 VAC 1-phase
Product Details
ABB Definite Purpose Contactor, Non-Reversing, 24 V AC Coil, 30 A Maximum Load Current, 2 hp Coil, 1 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 2 Auxiliary Contacts, SZ 30 Size, Screw Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, DIN Rail Mounting, 2.44 in L x 2 in W x 3.3 in H Dimensions
Attributes
Features
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips® 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- 1 hp at 120 VAC 1-phase, 2 hp at 240 VAC 1-phase
