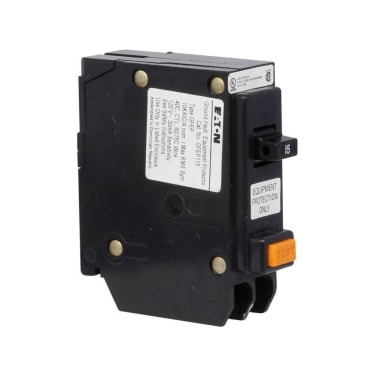

CUTLER HAMMER GFEP230 2 POLE EQP PROTECT 30 AMP PLUG-IN BRKR
MFR Part #: GFEP230
SKU #: 1134943
Brand: EATON
UPC: 786676382557
EATON GFEP230 Type GFEP Ground Fault Equipment Protector, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Circuit Protection, Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Datacenters, IT Space - CI, Hyper Converged, Marine Vessels and Equipment Applications
UL 489
Product Details
Attributes
Resources
EATON Ground Fault Equipment Protector, Type GFEP, 120/240 VAC, 30 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 14 to 4 AWG Wire, 6-1/4 x 2-1/4 x 3-1/2 in Dimensions
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
Amperage Rating:30 A
Connection Type:Plug-On
Country Of Origin:Dominican Republic
Number of Poles:2
Dimensions:6-1/4 x 2-1/4 x 3-1/2 in
Frame Type:GFEP
Height:3-1/2 in
Interrupt Rating:10 kA
Length:6-1/4 in
Phase:1 ph
Temperature Rating:60 to 75 deg C
Trip Range:30 mA
Trip Type:Thermal Magnetic
Type:Type GFEP
Voltage Rating:120/240 VAC
Width:2-1/4 in
Wire Size:14 to 4 AWG
Product Details
EATON Ground Fault Equipment Protector, Type GFEP, 120/240 VAC, 30 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 14 to 4 AWG Wire, 6-1/4 x 2-1/4 x 3-1/2 in Dimensions
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
Attributes
Amperage Rating: 30 A
Connection Type: Plug-On
Country Of Origin: Dominican Republic
Number of Poles: 2
Dimensions: 6-1/4 x 2-1/4 x 3-1/2 in
Frame Type: GFEP
Height: 3-1/2 in
Interrupt Rating: 10 kA
Length: 6-1/4 in
Phase: 1 ph
Temperature Rating: 60 to 75 deg C
Trip Range: 30 mA
Trip Type: Thermal Magnetic
Type: Type GFEP
Voltage Rating: 120/240 VAC
Width: 2-1/4 in
Wire Size: 14 to 4 AWG
