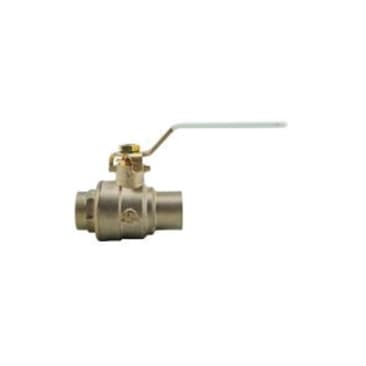

WATTS 88005700 LFFBVS-3C-M1 1/2 SWT BALL VALVE
MFR Part #: 88005700
SKU #: 1263178
Brand: WATTS®
UPC: 098268163902
WATTS® 88005700 LFFBVS-3C-M1 2-Piece Ball Valve, 1/2 in Nominal, Solder End Style, Copper Silicon Alloy Body, Full Port, FKM/PTFE Softgoods, Import
Limited
Commercial and Industrial Applications
FM Approved | MSS-SP-110 | NSF/ANSI 61/8 | UL Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product Details
Attributes
Features
Resources
WATTS®, 88005700, Ball Valve, 2-Piece, Series: LFFBVS-3C-M1, 1/2 in Nominal, Solder End Style, 150 psi WSP/600 psi WOG Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, 1/2 in Orifice, Lever Handle Actuator, Polished Chrome Brass Ball, 2-1/16 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Copper Silicon Alloy Body, FKM/PTFE Softgoods, Import
This 1/2 inch 2-piece full port lead free ball valve is used in residential, commercial, and industrial applications for potable water and a full range of liquids and gases. It features a lead free brass body with solder end connections, bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated lead free brass ball, lead free brass adapter and steel handle. Certified NSF-61/ANSI 8, UL listed, and FM approved.
Actuator Type:Lever Handle
Ball Material:Polished Chrome Brass
Body Material:Copper Silicon Alloy
Country Of Origin:Mexico
Domestic/Import:Import
End Style:Solder
Finish:Brass
Inlet to Outlet Length:2-1/16 in
Media:Gas/Liquids
Nominal Size:1/2 in
Orifice Size:1/2 in
Port Type:Full
Pressure Rating:150 psi WSP/600 psi WOG
Series:LFFBVS-3C-M1
Softgoods Material:FKM/PTFE
Temperature Rating:-40 to 400 deg F
Top to Inlet Center:1-13/16 in
Trim Material:Brass/PTFE
Type:2-Piece
- Machined chrome plated lead free brass ball
- Virgin PTFE seat/thrust washer/stem packing
- Fluorocarbon elastomer stem O-ring prevents stem leaks
Product Details
WATTS®, 88005700, Ball Valve, 2-Piece, Series: LFFBVS-3C-M1, 1/2 in Nominal, Solder End Style, 150 psi WSP/600 psi WOG Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, 1/2 in Orifice, Lever Handle Actuator, Polished Chrome Brass Ball, 2-1/16 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Copper Silicon Alloy Body, FKM/PTFE Softgoods, Import
This 1/2 inch 2-piece full port lead free ball valve is used in residential, commercial, and industrial applications for potable water and a full range of liquids and gases. It features a lead free brass body with solder end connections, bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated lead free brass ball, lead free brass adapter and steel handle. Certified NSF-61/ANSI 8, UL listed, and FM approved.
Attributes
Actuator Type: Lever Handle
Ball Material: Polished Chrome Brass
Body Material: Copper Silicon Alloy
Country Of Origin: Mexico
Domestic/Import: Import
End Style: Solder
Finish: Brass
Inlet to Outlet Length: 2-1/16 in
Media: Gas/Liquids
Nominal Size: 1/2 in
Orifice Size: 1/2 in
Port Type: Full
Pressure Rating: 150 psi WSP/600 psi WOG
Series: LFFBVS-3C-M1
Softgoods Material: FKM/PTFE
Temperature Rating: -40 to 400 deg F
Top to Inlet Center: 1-13/16 in
Trim Material: Brass/PTFE
Type: 2-Piece
Features
- Machined chrome plated lead free brass ball
- Virgin PTFE seat/thrust washer/stem packing
- Fluorocarbon elastomer stem O-ring prevents stem leaks
