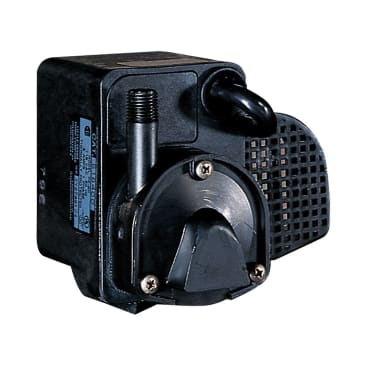

LITTLE GIANT 518400 Image 2

LITTLE GIANT 518400 PE-2H

MFR Part #: 518400
SKU #: 1153783
Brand: Little Giant®
UPC: 010121184008
Little GIANT® 518400 Submersible Pump, 115 VAC, 0.8 A, 1/40 hp, 300 gph, 12.2 ft Max Feet of Head, Polyester
12 Month
CSA Certified | UL Listed

Little GIANT® Submersible Pump, Model: PE-2H, 115 VAC, 0.8 A, Power Rating: 47 W, 60 Hz, 1/40 hp, 300 gph Flow Rate, 1 ph, 1/4 in Discharge, 6 ft Cord, 12.2 ft Maximum Feet of Head, 5.3 psi, 120 deg F, Nylon Impeller, Polyester, 4.8 in L x 2.8 in W x 4.2 in H, Epoxy-Coated

Developed with a durable and crack-resistant epoxy encapsulated motor design, the PE-2 series is ideal for water transfer or recirculation and water displays. By operating continuously, this direct drive pump produces greater starting torque and more pressure than comparable mag drive pumps. Direct drive pumps are ideal for use in filtration, waterfalls and streams.

Product Details

Little GIANT® Submersible Pump, Model: PE-2H, 115 VAC, 0.8 A, Power Rating: 47 W, 60 Hz, 1/40 hp, 300 gph Flow Rate, 1 ph, 1/4 in Discharge, 6 ft Cord, 12.2 ft Maximum Feet of Head, 5.3 psi, 120 deg F, Nylon Impeller, Polyester, 4.8 in L x 2.8 in W x 4.2 in H, Epoxy-Coated

Developed with a durable and crack-resistant epoxy encapsulated motor design, the PE-2 series is ideal for water transfer or recirculation and water displays. By operating continuously, this direct drive pump produces greater starting torque and more pressure than comparable mag drive pumps. Direct drive pumps are ideal for use in filtration, waterfalls and streams.

Attributes

Amperage Rating.8 A
Cord Size6 ft
Dimensions4.8 in L x 2.8 in W x 4.2 in H
Discharge Size1/4 in
FinishEpoxy-Coated
Flow Rate300 gph
Frequency Rating60 Hz
HP Rating1/40 hp
Impeller MaterialNylon
MaterialPolyester
Maximum Feet of Head12.2 ft
ModelPE-2H
Phase1 ph
Power Rating47 W
Pressure Rating5.3 psi
Temperature Rating120 deg F
Voltage Rating115 VAC

Features

  • Nylon volute
  • Fluoroelastomer (FKM) shaft seal
  • Snap off screen covers intake
