WOODFORD V22W-12-MH 12 WIRSBO HOT/COLD NON-FRZ VERT WALL FCT
Product Details
Attributes
Features
Resources

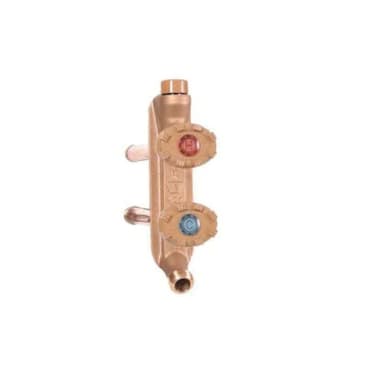

WOODFORD® Freezeless Hot and Cold Wall Faucet, 12 in Nominal, PEX Connection, 13-7/8 in Stem Length, 125 psi, Water Media, Oval Handle Actuator, 2 Handles, Handle Operator, Lead-Free, Wall Mounting, Brass Body, Stainless Steel Seat, Metal Handle, EPDM Packing, 120 deg F, 15/16 in Dia, Domestic/Import: Domestic, Additional Information: Model V22, 12 in THK Wall
The freezeless model 22 hot and cold faucet is designed and intended for year round hot and cold irrigation and cleaning purposes regardless of outside temperature. Separate hot and cold inlet tubes allow for manually operated temperature control with cross contamination protection. This faucet contains patented pressure relief valves that prevents the faucet from bursting in freezing weather should a hose be accidentally left on. The model 22 contains an integral backflow protection device and does not require an add-on vacuum breaker. This ASSE 1019 device in intended for irrigation use and outdoor watering and shall not be subjected to more than 12 hr of continuous water pressure.
- Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on
- Built-in vent float-style vacuum breaker
- Faucet drains automatically when hose is removed
- EPDM packing to prevent leaking
- Oval, powder-coated, die cast aluminum handle
- Stainless steel seat - eliminates wire draw
- Standard "O" size seat washer
- Tee key configuration
- No-lead solder
- 3/4 in male hose thread
Product Details
WOODFORD® Freezeless Hot and Cold Wall Faucet, 12 in Nominal, PEX Connection, 13-7/8 in Stem Length, 125 psi, Water Media, Oval Handle Actuator, 2 Handles, Handle Operator, Lead-Free, Wall Mounting, Brass Body, Stainless Steel Seat, Metal Handle, EPDM Packing, 120 deg F, 15/16 in Dia, Domestic/Import: Domestic, Additional Information: Model V22, 12 in THK Wall
The freezeless model 22 hot and cold faucet is designed and intended for year round hot and cold irrigation and cleaning purposes regardless of outside temperature. Separate hot and cold inlet tubes allow for manually operated temperature control with cross contamination protection. This faucet contains patented pressure relief valves that prevents the faucet from bursting in freezing weather should a hose be accidentally left on. The model 22 contains an integral backflow protection device and does not require an add-on vacuum breaker. This ASSE 1019 device in intended for irrigation use and outdoor watering and shall not be subjected to more than 12 hr of continuous water pressure.
Attributes
Features
- Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on
- Built-in vent float-style vacuum breaker
- Faucet drains automatically when hose is removed
- EPDM packing to prevent leaking
- Oval, powder-coated, die cast aluminum handle
- Stainless steel seat - eliminates wire draw
- Standard "O" size seat washer
- Tee key configuration
- No-lead solder
- 3/4 in male hose thread
