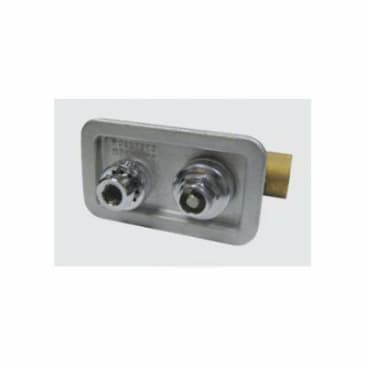

WOODFORD 75 Image 1

WOODFORD 75 3/4 SWIVEL IP WALL HYDRANT WITH VACUUM BREAKER

MFR Part #: 75
SKU #: 1282992
Brand: Woodford®
UPC: 671090081639
Woodford® 75 Model 75 Anti-Siphon Close Coupled Trimline Wall Hydrant, 3/4 in, FNPT, 125 psi
5 Years Limited
For Non-Freezing Areas Only
ASSE 1011 | CSA Certified | IAPMO Listed

Woodford® Trimline Wall Hydrant, Anti-Siphon Close Coupled, Series: Model 75, 3/4 in Nominal, FNPT End Style, 125 psi Pressure, Tee Key Handle, 120 deg F, Polished Chrome, 5-1/2 in W x 2-5/8 in D x 3-1/4 in H Dimensions

The Model 75 and B75 are anti-siphon wall hydrants designed for irrigation purposes in mild climate areas or within temperature controlled buildings. The Model 75 is only 2-5/8 in deep and fits inside a stud wall. The B75 fits inside a 4 in wall.

Product Details

Woodford® Trimline Wall Hydrant, Anti-Siphon Close Coupled, Series: Model 75, 3/4 in Nominal, FNPT End Style, 125 psi Pressure, Tee Key Handle, 120 deg F, Polished Chrome, 5-1/2 in W x 2-5/8 in D x 3-1/4 in H Dimensions

The Model 75 and B75 are anti-siphon wall hydrants designed for irrigation purposes in mild climate areas or within temperature controlled buildings. The Model 75 is only 2-5/8 in deep and fits inside a stud wall. The B75 fits inside a 4 in wall.

Attributes

Dimensions: 5-1/2 in W x 2-5/8 in D x 3-1/4 in H
End Style: FNPT
Finish: Polished Chrome
Handle Type: Tee Key
Nominal Size: 3/4 in
Pressure Rating: 125 psi
Series: Model 75
Temperature Rating: 120 deg F
Type: Anti-Siphon Close Coupled

Features

  • Permanent type brass valve body with hemispherical seating surface
  • Hardened stainless steel stem resists damage
  • EPDM rubber with adjustable packing nut
  • Loose key operates hydrant
  • 3/4 in female pipe thread, inlet swivels 360 deg to any position
  • Nidel® model 34HF vacuum breaker with 3/4 in male hose thread

Resources

Specification Sheet
