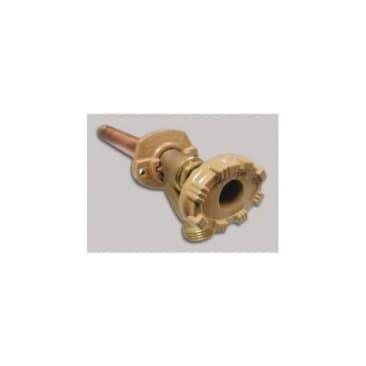

WOODFORD 16PX-14 14 PEX NON-FRZ WALL FCT

MFR Part #: 16PX-14
SKU #: 1133052
Brand: Woodford®
UPC: 671090019946
Woodford® 16PX-14 Model 16 Freezeless Wall Faucet, 1/2 in, PEX Tube, 14 in THK Wall, 125 psi, Domestic
5 Years Limited
For Residential Outside Water Service Application and Irrigation Purposes
CSA Certified

Woodford® Wall Faucet, Freezeless, Series: Model 16, 1/2 in Nominal, PEX Tube, 14 in Wall Thickness, 125 psi, Oval Wheel, 120 deg F, 15/16 in Dia Inlet, Domestic

The Woodford® Model 16 contains an internal resetting pressure relief valve which prevents the faucet casing tube from bursting in freezing conditions even if a hose is This faucet is intended for irrigation purposes and designed for residential outside water service application and is not intended for continuous use applications. Unintentionally left on.

Product Details

Woodford® Wall Faucet, Freezeless, Series: Model 16, 1/2 in Nominal, PEX Tube, 14 in Wall Thickness, 125 psi, Oval Wheel, 120 deg F, 15/16 in Dia Inlet, Domestic

The Woodford® Model 16 contains an internal resetting pressure relief valve which prevents the faucet casing tube from bursting in freezing conditions even if a hose is This faucet is intended for irrigation purposes and designed for residential outside water service application and is not intended for continuous use applications. Unintentionally left on.

Attributes

Country Of Origin: US
Dimensions: 15/16 in Dia Inlet
Domestic/Import: Domestic
Nominal Size: 1/2 in
Pressure Rating: 125 psi
Temperature Rating: 120 deg F
Wall Thickness: 14 in

Features

  • This unit offers no anti-siphon protection
  • Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on
  • EPDM packing to prevent leaking
  • Oval, powder-coated, die cast aluminum handle
  • Stainless steel seat - eliminates wire draw
  • Standard "O" size seat washer
  • Adjustable polycarbonate wall flange
  • 3/4 in male hose thread nozzle
  • No lead solder
  • Full circle operating threads on valve body and retainer
