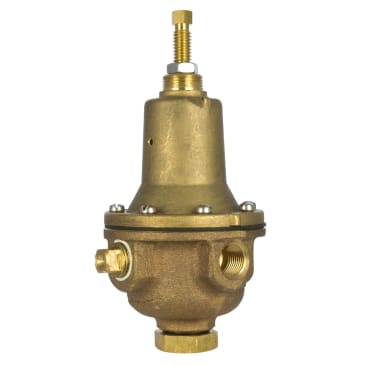

WATTS 0661-06 Image 1

WATTS 0661-06 LFCP-15 3/8 30-300PSI REG

MFR Part #: 0661-06
SKU #: 1119394
Brand: WATTS®
UPC: 098268815122
WATTS® 0661-06 LFCP15 Pressure Reducing Pilot, 3/8 in Nominal, NPT End Style, 400 psi Pressure, Copper Silicon Alloy Body
Limited
PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

WATTS® Pressure Reducing Pilot, Series: LFCP15, 3/8 in Nominal, NPT, 400 psi, Media: Water, 2.95 in Inlet to Outlet Length, 5.37 in Top to Inlet Center, Copper Silicon Alloy Body, 316 Stainless Steel Trim/304 Stainless Steel Stem/302 Stainless Steel Spring Trim, Buna-N

The 3/8 inch lead free pressure reducing pilot is a direct acting, diaphragm actuated control pilot that automatically reduces a higher upstream (inlet) pressure to a constant downstream (outlet) pressure. It is normally held open by the force of the adjustable spring setting above the diaphragm having a 30 to 300 psi adjustable range. It consists of a lead free brass body and spring housing, Buna-N rubber goods, NPT threaded female connections, and a pressure gauge port.

Product Details

WATTS® Pressure Reducing Pilot, Series: LFCP15, 3/8 in Nominal, NPT, 400 psi, Media: Water, 2.95 in Inlet to Outlet Length, 5.37 in Top to Inlet Center, Copper Silicon Alloy Body, 316 Stainless Steel Trim/304 Stainless Steel Stem/302 Stainless Steel Spring Trim, Buna-N

The 3/8 inch lead free pressure reducing pilot is a direct acting, diaphragm actuated control pilot that automatically reduces a higher upstream (inlet) pressure to a constant downstream (outlet) pressure. It is normally held open by the force of the adjustable spring setting above the diaphragm having a 30 to 300 psi adjustable range. It consists of a lead free brass body and spring housing, Buna-N rubber goods, NPT threaded female connections, and a pressure gauge port.

Attributes

Country Of Origin: US
End Style: NPT
Nominal Size: 3/8 in
Pressure Range: 400 psi
Body Material: Copper Silicon Alloy
Inlet to Outlet Length: 2.95 in
Media: Water
Series: LFCP15
Softgoods Material: Buna-N
Top to Inlet Center: 5.37 in
Trim Material: 316 Stainless Steel Trim/304 Stainless Steel Stem/302 Stainless Steel Spring

Features

  • Lead free brass body construction
  • The wetted surface of this product contacted by consumable water contains less than 0.25 Percent of lead by weight
  • 30 to 300 psi adjustable range
