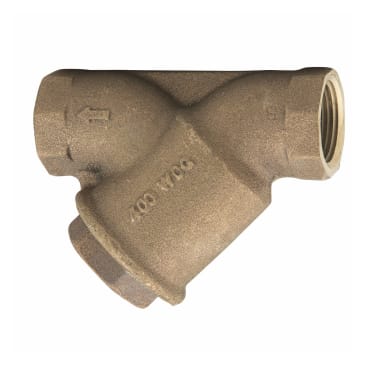

WATTS 0124007 LF777S-20 2-1/2 SWT BRASS Y-STRAINER

MFR Part #: 0124007
SKU #: 1106789
Brand: WATTS®
UPC: 098268770698
WATTS® 0124007 LF777, LF777S-20 Wye Strainer, 2-1/2 in Nominal, 8-1/2 in OAL, FNPT Connection, EPDM Softgoods
Limited
Solid Retainer Cap and Gasket
Liquid and Steam Service
ARRA/BAA Compliant | US Green Building Council Member | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm

WATTS® Wye Strainer, Series: LF777, LF777S-20, 2-1/2 in Nominal, 8-1/2 in Overall Length, FNPT, 1-1/4 in NPT Blow-Off, EPDM, Bronze Body

This 2 1/2 inch lead free wye pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It has a retainer cap tapped for closure plug, threaded end connections, and a 20 mesh stainless steel screen. The maximum working pressure is 400 psi (27.6 bar) WOG at 210 degree F (99 degrees C) and 125 psi (8.6 bar) WSP at 353 degree F (178 degrees C).

Product Details

WATTS® Wye Strainer, Series: LF777, LF777S-20, 2-1/2 in Nominal, 8-1/2 in Overall Length, FNPT, 1-1/4 in NPT Blow-Off, EPDM, Bronze Body

This 2 1/2 inch lead free wye pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It has a retainer cap tapped for closure plug, threaded end connections, and a 20 mesh stainless steel screen. The maximum working pressure is 400 psi (27.6 bar) WOG at 210 degree F (99 degrees C) and 125 psi (8.6 bar) WSP at 353 degree F (178 degrees C).

Attributes

Blow-Off Size: 1-1/4 in NPT
Body Material: Bronze
Connection Type: FNPT
Country Of Origin: US
Nominal Size: 2-1/2 in
Overall Length: 8-1/2 in
Series: LF777, LF777S-20
Softgoods Material: EPDM

Features

  • Threaded end connections
  • The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • 45 Deg wye-pattern body for efficient flow and long life
