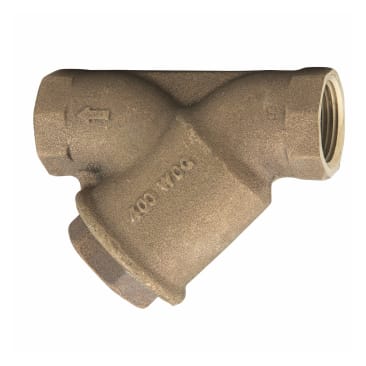

WATTS 0124006 LF777SM3-20 2 SWT BRASS Y-STRAINER

MFR Part #: 0124006
SKU #: 1106726
Brand: WATTS®
UPC: 098268770285
WATTS® 0124006 LF777, LF777SM3-20 Wye Strainer, 2 in Nominal, 6-3/16 in OAL, FNPT Connection, EPDM Softgoods, Import
1 year Limited
Solid Retainer Cap and Gasket
Liquid and Steam Service
BAA/ARRA Compliant | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm

WATTS® Wye Strainer, Series: LF777, LF777SM3-20, 2 in Nominal, 6-3/16 in Overall Length, FNPT, 1-1/4 in NPT Blow-Off, EPDM, Bronze Body, Import

This 2 inch lead free wye pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It consists of a lead free body, retainer cap tapped for closure plug, threaded end connections, and a 20 mesh stainless steel screen.

Product Details

WATTS® Wye Strainer, Series: LF777, LF777SM3-20, 2 in Nominal, 6-3/16 in Overall Length, FNPT, 1-1/4 in NPT Blow-Off, EPDM, Bronze Body, Import

This 2 inch lead free wye pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It consists of a lead free body, retainer cap tapped for closure plug, threaded end connections, and a 20 mesh stainless steel screen.

Attributes

Blow-Off Size: 1-1/4 in NPT
Body Material: Bronze
Connection Type: FNPT
Domestic/Import: Import
Nominal Size: 2 in
Overall Length: 6-3/16 in
Series: LF777, LF777SM3-20
Softgoods Material: EPDM

Features

  • Threaded end connections
  • The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • 45 Deg wye-pattern body for efficient flow and long life

Resources

03dfef4698efd0a8e49417b137df89af6dac0bfe_1079.pdf
2fb494b72a2f35dc43815b7757871bae25186ab1_1079.pdf
Instruction/Installation Manual
Specification Sheet
