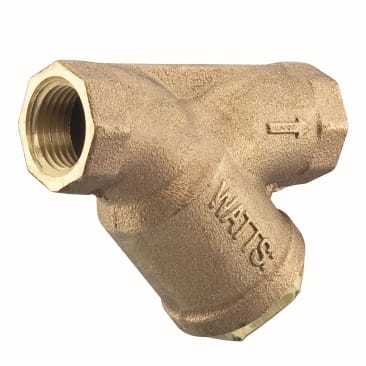

WATTS 0124004 Image 2

WATTS 0124004 LF777MS1-20 1-1/4 SWT BRASS Y-STRAINER

MFR Part #: 0124004
SKU #: 1106765
Brand: WATTS®
UPC: 098268770193
WATTS® 0124004 LF777 Wye Strainer, 1-1/4 in Nominal, 5-1/8 in OAL, FNPT Connection, EPDM Softgoods, Import
1 year Limited
Solid Retainer Cap and Gasket
Liquid and Steam Service
BAA/ARRA Compliant | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm

WATTS®, 0124004, Wye Strainer, Series: LF777, 1-1/4 in Nominal, 5-1/8 in Overall Length, FNPT Connection, 3/4 in NPT Blow-Off, EPDM Softgoods, Bronze Body, Import

This 1 1/4 inch lead free wye pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It consists of a lead free body, retainer cap tapped for closure plug, threaded end connections, and a 20 mesh stainless steel screen.

Product Details

WATTS®, 0124004, Wye Strainer, Series: LF777, 1-1/4 in Nominal, 5-1/8 in Overall Length, FNPT Connection, 3/4 in NPT Blow-Off, EPDM Softgoods, Bronze Body, Import

This 1 1/4 inch lead free wye pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It consists of a lead free body, retainer cap tapped for closure plug, threaded end connections, and a 20 mesh stainless steel screen.

Attributes

Blow-Off Size: 3/4 in NPT
Body Material: Bronze
Connection Type: FNPT
Domestic/Import: Import
Nominal Size: 1-1/4 in
Overall Length: 5-1/8 in
Series: LF777
Softgoods Material: EPDM

Features

  • EPDM O-ring cap seal
  • The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • 45 Deg wye-pattern body for efficient flow and long life
  • Threaded end connections
