WATTS 0123162 Image 3

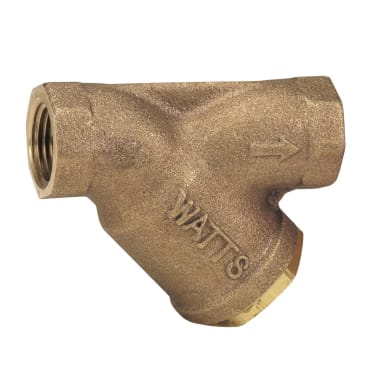

WATTS 0123162 LF777M3-20 2 IP BRASS Y-STRAINER

MFR Part #: 0123162
SKU #: 1106825
Brand: WATTS®
UPC: 098268664966
WATTS® 0123162 LF777, LF777M3-20 Wye Strainer, 2 in Nominal, 6-3/16 in OAL, FNPT Connection, EPDM Softgoods, Import
Limited
Retainer Cap
Liquid and Steam Service
ARRA/BAA Compliant | ASSE Listed | cCSAus Certified | FM Approved | UL/ULC Listed | USC Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm

WATTS® Wye Strainer, Series: LF777, LF777M3-20, 2 in Nominal, 6-3/16 in Overall Length, FNPT, EPDM, Cast Copper Silicon Alloy Body, Import

This 2 inch lead free wye pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It has a solid retainer cap with gasket, threaded end connections, and a 20 mesh stainless steel screen.

Product Details

WATTS® Wye Strainer, Series: LF777, LF777M3-20, 2 in Nominal, 6-3/16 in Overall Length, FNPT, EPDM, Cast Copper Silicon Alloy Body, Import

This 2 inch lead free wye pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It has a solid retainer cap with gasket, threaded end connections, and a 20 mesh stainless steel screen.

Attributes

Body Material: Cast Copper Silicon Alloy
Connection Type: FNPT
Domestic/Import: Import
Nominal Size: 2 in
Overall Length: 6-3/16 in
Series: LF777, LF777M3-20
Softgoods Material: EPDM

Features

  • Wye pattern
  • Threaded end connections
  • Closure plug not provided
  • The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
  • 400 Psi WOG non-shock at -20 to 100 deg F

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
