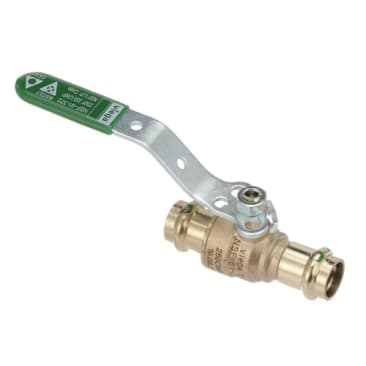

VIEGA 79950 Image 1

VIEGA 79950 PROPRESS 2IN PRSXPRS LEAD FREE BRONZE COPPER PRESS BALL VALVE

MFR Part #: 79950
SKU #: 1300253
Brand: ProPress®
UPC: 400052144095
ProPress® 79950 2971.1ZL 2-Piece Ball Valve, 2 in Nominal, Press End Style, C87700 Bronze Body, Full Port, EPDM Softgoods, Import
2 Years Limited
EPDM Sealing Element and Locking Metal Handle
Potable Water Applications
IAPMO/ANSI Z1157|MSS SP-110|NSF 61-372/61-G|UPC Listed|PROP65: This product can expose you to chemicals including Chromium (hexavalent compounds), which is know to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

ProPress® Ball Valve, 2-Piece, Series: 2971.1ZL, 2 in Nominal, Press, 250 psi CWP, 0 to 250 deg F, Full Port, Media: Water, Locking Handle Actuator, 316 Stainless Steel Ball, 3.32 in Top to Inlet Center, C87700 Bronze Body, C69300 Brass/PTFE Trim, EPDM, Import

The two-piece zero lead bronze ball valve is equipped with a full port, zero lead bronze body. The ball valve features EPDM sealing elements, EPDM stem seals and Viega Smart Connect® technology for easy identification of unpressed connections during pressure testing.

Product Details

ProPress® Ball Valve, 2-Piece, Series: 2971.1ZL, 2 in Nominal, Press, 250 psi CWP, 0 to 250 deg F, Full Port, Media: Water, Locking Handle Actuator, 316 Stainless Steel Ball, 3.32 in Top to Inlet Center, C87700 Bronze Body, C69300 Brass/PTFE Trim, EPDM, Import

The two-piece zero lead bronze ball valve is equipped with a full port, zero lead bronze body. The ball valve features EPDM sealing elements, EPDM stem seals and Viega Smart Connect® technology for easy identification of unpressed connections during pressure testing.

Attributes

End Style: Press
Nominal Size: 2 in
Actuator Type: Locking Handle
Ball Material: 316 Stainless Steel
Body Material: C87700 Bronze
Domestic/Import: Import
Media: Water
Port Type: Full
Pressure Rating: 250 psi CWP
Series: 2971.1ZL
Softgoods Material: EPDM
Temperature Rating: 0 to 250 deg F
Top to Inlet Center: 3.32 in
Trim Material: C69300 Brass/PTFE
Type: 2-Piece

Features

  • Multiple system and connection solutions
  • 316 stainless steel ball
  • Smart Connect® technology
  • Installs within minutes - up to 80% faster than conventional methods
  • Same tool used for installation of ball valves and fittings
  • No flame, fire watch or hot work permits required
  • PTFE seat/C69300 brass stem
  • EPDM seal

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
Warranty Information
