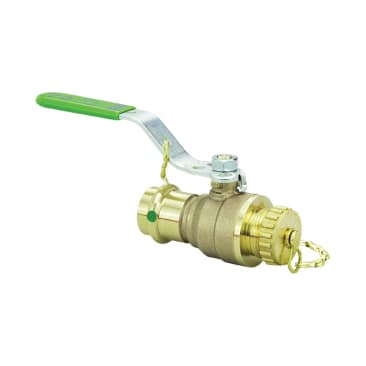

VIEGA 79875 Image 1

VIEGA 79875 PROPRESS 1/2IN PRSXHOSE LEAD FREE BRONZE COPPER PRESS BALL VALVE

MFR Part #: 79875
SKU #: 1300263
Brand: ProPress®
UPC: 400052144194
ProPress® 79875 Zero Lead Ball Valve, 1/2 x 3/4 in Nominal, Press x Hose End Style, 250 psi CWP Pressure, Bronze Body, Full Port, Import
Limited
For Potable Applications
ANAB Certified|ASME A112.4.14|ISO 9001 Registered|Listed by NSF to Commercial Hot|MSS SP-110|NSF UP-Code|NSF 61 Annex G

ProPress® Ball Valve, Zero Lead, 1/2 x 3/4 in Nominal, Press x Hose, 250 psi CWP, 250 deg F, Full Port, Lockable Actuator, Bronze Body, 316 Stainless Steel Ball, Brass Trim, EPDM Seal/RPTFE Seat, Import

The Zero Lead™ bronze ball valve is equipped with a full port, Zero Lead™ bronze body. The ball valve features EPDM sealing elements, EPDM stem seals and Viega's Smart Connect® feature for easy identification of unpressed connections during pressure testing.

Product Details

ProPress® Ball Valve, Zero Lead, 1/2 x 3/4 in Nominal, Press x Hose, 250 psi CWP, 250 deg F, Full Port, Lockable Actuator, Bronze Body, 316 Stainless Steel Ball, Brass Trim, EPDM Seal/RPTFE Seat, Import

The Zero Lead™ bronze ball valve is equipped with a full port, Zero Lead™ bronze body. The ball valve features EPDM sealing elements, EPDM stem seals and Viega's Smart Connect® feature for easy identification of unpressed connections during pressure testing.

Attributes

End Style: Press x Hose
Nominal Size: 1/2 x 3/4 in
Actuator Type: Lockable
Ball Material: 316 Stainless Steel
Body Material: Bronze
Domestic/Import: Import
Port Type: Full
Pressure Rating: 250 psi CWP
Softgoods Material: EPDM Seal/RPTFE Seat
Temperature Rating: 250 deg F
Trim Material: Brass
Type: Zero Lead

Features

  • Eco brass blowout proof stem
  • Lockable metal handle
  • Smart Connect® feature
  • Hose cap is full pressure rated
  • 200 psi operating
  • Model 2971.6ZL
  • Spare parts Viega ProPress® replacement handle model 2971.8
  • Zero Lead™ identifies Viega products meeting the lead free requirements of NSF 61-G through testing under NSF/ANSI 372 (0.25% or less maximum weighted average lead content)
