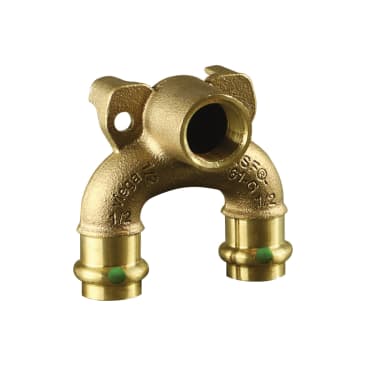

VIEGA 78800 Image 1

VIEGA 78800 PROPRESS 1/2IN PRSXFIP LEAD FREE BRONZE COPPER PRESS DOUBLE DROP EAR 90 ELBOW

MFR Part #: 78800
SKU #: 1300077
Brand: ProPress®
UPC: 400052142336
ProPress® 78800 Double Drop Elbow, 1/2 in Nominal, Press x Press x FNPT End Style, Bronze, Import
Limited
EPDM Sealing Element
For use in potable water, hydronic heating (w/ glycol), chilled water, compressed air, non-medical gases, fire sprinkler, low pressure steam, vacuum systems
ASME B16.51|ABS Listed|Bureau Veritas (BV)|CSA MSE-13|Deutsch Verein des Gas-und Wasserfachese.V. (DVGW)|Det Norske Veritas (DNV)|Florida Building Code|FM Class 1920|IAPMO PS117|ICC LC 1002|KIWAPHCC National Standard Plumbing Code|Lloyd's Register (LR)|NSF 61G|NFPA 13/13D and 13R|Registro Italiano Navale (RINA)|UL 213|U.S. Coast Guard|Volume II Plumbing Code

ProPress® Lead Free Double Drop Elbow, Fitting/Connector Type: Double Drop Elbow, 1/2 in Nominal, Press x Press x FNPT, 200 psi, 0 to 250 deg F, Bronze, Import

Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.

Product Details

ProPress® Lead Free Double Drop Elbow, Fitting/Connector Type: Double Drop Elbow, 1/2 in Nominal, Press x Press x FNPT, 200 psi, 0 to 250 deg F, Bronze, Import

Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.

Attributes

End Style: Press x Press x FNPT
Fitting/Connector Type: Double Drop Elbow
Nominal Size: 1/2 in
Domestic/Import: Import
Material: Bronze
Pressure Rating: 200 psi
Temperature Rating: 0 to 250 deg F

Features

  • Patented Viega Smart Connect® feature helps installers ensure that they have pressed all connection
  • Makes secure connections in less than seven seconds
  • No flame, solder, flux or heavy equipment needed
  • Connections can be made wet or dry
  • 600 psi maximum test pressure

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
Warranty Information
