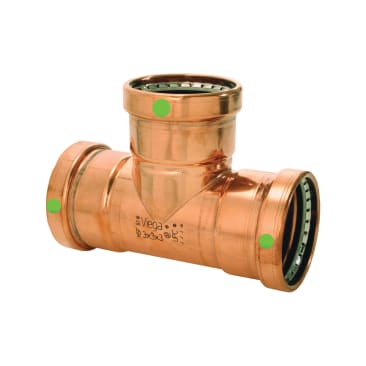

VIEGA 20754 Image 1

VIEGA 20754 PROPRESS 3INX2-1/2INX3IN PRSXPRSXPRS COPPER PRESS TEE

MFR Part #: 20754
SKU #: 1300109
Brand: ProPress®
UPC: 400052142657
ProPress® 20754 Tube Tee, 3 x 2-1/2 x 3 in Nominal, Press End Style, Copper, Import
50 Years
EPDM Sealing Element
Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gases, Fire Sprinkler, Low Pressure Steam
ABS|CSA MSE-13|CRN OA4541.5|FM Class 1920|IAPMO PS117|NSF 61G|UL 213

ProPress® Tube Tee, Fitting/Connector Type: Tee, 3 x 2-1/2 x 3 in Nominal, Press, 200 psi, 0 to 250 deg F, Copper, Import

ProPress® and ProPress® XL (Copper) are safe, reliable and economical copper pipe installation systems that use modern cold press connection technology. Viega ProPress® fittings are for use with type K, L and M hard copper tubing from 1/2 to 4 in and soft copper tubing in 1/2 to 1-1/4 in Dia. All tubing must comply with the ASTM B88 standard. ProPress fittings are approved for installations in both above and below ground applications. Per code, local inspector approval must be obtained prior to installation below ground. ProPress has been used in Europe since the late 1980s and in the United States since the late 1990s for a variety of applications. Backed by two plumbing leaders with over 175 years of combined excellence.

Product Details

ProPress® Tube Tee, Fitting/Connector Type: Tee, 3 x 2-1/2 x 3 in Nominal, Press, 200 psi, 0 to 250 deg F, Copper, Import

ProPress® and ProPress® XL (Copper) are safe, reliable and economical copper pipe installation systems that use modern cold press connection technology. Viega ProPress® fittings are for use with type K, L and M hard copper tubing from 1/2 to 4 in and soft copper tubing in 1/2 to 1-1/4 in Dia. All tubing must comply with the ASTM B88 standard. ProPress fittings are approved for installations in both above and below ground applications. Per code, local inspector approval must be obtained prior to installation below ground. ProPress has been used in Europe since the late 1980s and in the United States since the late 1990s for a variety of applications. Backed by two plumbing leaders with over 175 years of combined excellence.

Attributes

End Style: Press
Fitting/Connector Type: Tee
Nominal Size: 3 x 2-1/2 x 3 in
Domestic/Import: Import
Material: Copper
Pressure Rating: 200 psi
Temperature Rating: 0 to 250 deg F

Features

  • Fast and easy to use
  • Flameless
  • Large selection of fittings from 1/2 to 4 in
  • Consistent professional appearance
  • Less equipment required
  • Environmentally friendly connection system
  • Versatility of fittings and tools for variety of applications
  • For use with ASTM B88 tubing
  • Model 0918XL

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
Warranty Information
