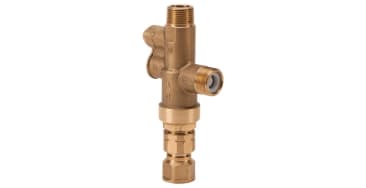

TACO 5123-WH-N3 3/4 IPXNPSH DIRECT MOUNT MIXING VALVE
MFR Part #: 5123-WH-N3
SKU #: 1291218
Brand: Taco® Comfort Solutions™
UPC: 687752713060
Taco® 5123-WH-N3 5120 Lead Free Mixing Valve, 3/4 in Nominal, NPT Male Union End Style, 230 psi Pressure, 1.2 Cv Flow, Forged Brass Body, Domestic
Check Valves
For Domestic Water Distribution
ASSE 1070|ASSE 1017
Product Details
Attributes
Features
Resources
Taco®, 5123-WH-N3, Mixing Valve, Lead Free, Series: 5120, 3/4 in Nominal, NPT Male Union End Style, 230 psi Pressure, 85 to 120 deg F, 1.2 Cv Flow, Media: Water, Forged Brass Body, 6.6 in H x 3.5 in W Dimensions, Domestic
Domestic/Import:Domestic
Pressure Rating:230 psi
Series:5120
Temperature Rating:85 to 120 deg F
Type:Lead Free
Body Material:Forged Brass
Media:Water
Nominal Size:3/4 in
- Suitable for use in Potable Water
- No Routine Maintenance Required
- Outlet Temperature Strip
- +- 3 deg F Accuracy of Outlet Temperature
- Factory set to 115-120 deg F
- 120 to 180 deg F Hot Supply Temperature
- 20% Maximum Variation in Supply Pressure
- 27 deg F Minimum Temperature Differential Between Hot Supply and Mixed
- 39 to 80 deg F Cold Supply Temperature
- 85 to 120 deg F Outlet Temperature Range
- Lockable Maximum Temperature Setting
- Includes Temperature Gauge
- Outlet Temperature Strip
Product Details
Taco®, 5123-WH-N3, Mixing Valve, Lead Free, Series: 5120, 3/4 in Nominal, NPT Male Union End Style, 230 psi Pressure, 85 to 120 deg F, 1.2 Cv Flow, Media: Water, Forged Brass Body, 6.6 in H x 3.5 in W Dimensions, Domestic
Attributes
Domestic/Import: Domestic
Pressure Rating: 230 psi
Series: 5120
Temperature Rating: 85 to 120 deg F
Type: Lead Free
Body Material: Forged Brass
Media: Water
Nominal Size: 3/4 in
Features
- Suitable for use in Potable Water
- No Routine Maintenance Required
- Outlet Temperature Strip
- +- 3 deg F Accuracy of Outlet Temperature
- Factory set to 115-120 deg F
- 120 to 180 deg F Hot Supply Temperature
- 20% Maximum Variation in Supply Pressure
- 27 deg F Minimum Temperature Differential Between Hot Supply and Mixed
- 39 to 80 deg F Cold Supply Temperature
- 85 to 120 deg F Outlet Temperature Range
- Lockable Maximum Temperature Setting
- Includes Temperature Gauge
- Outlet Temperature Strip
