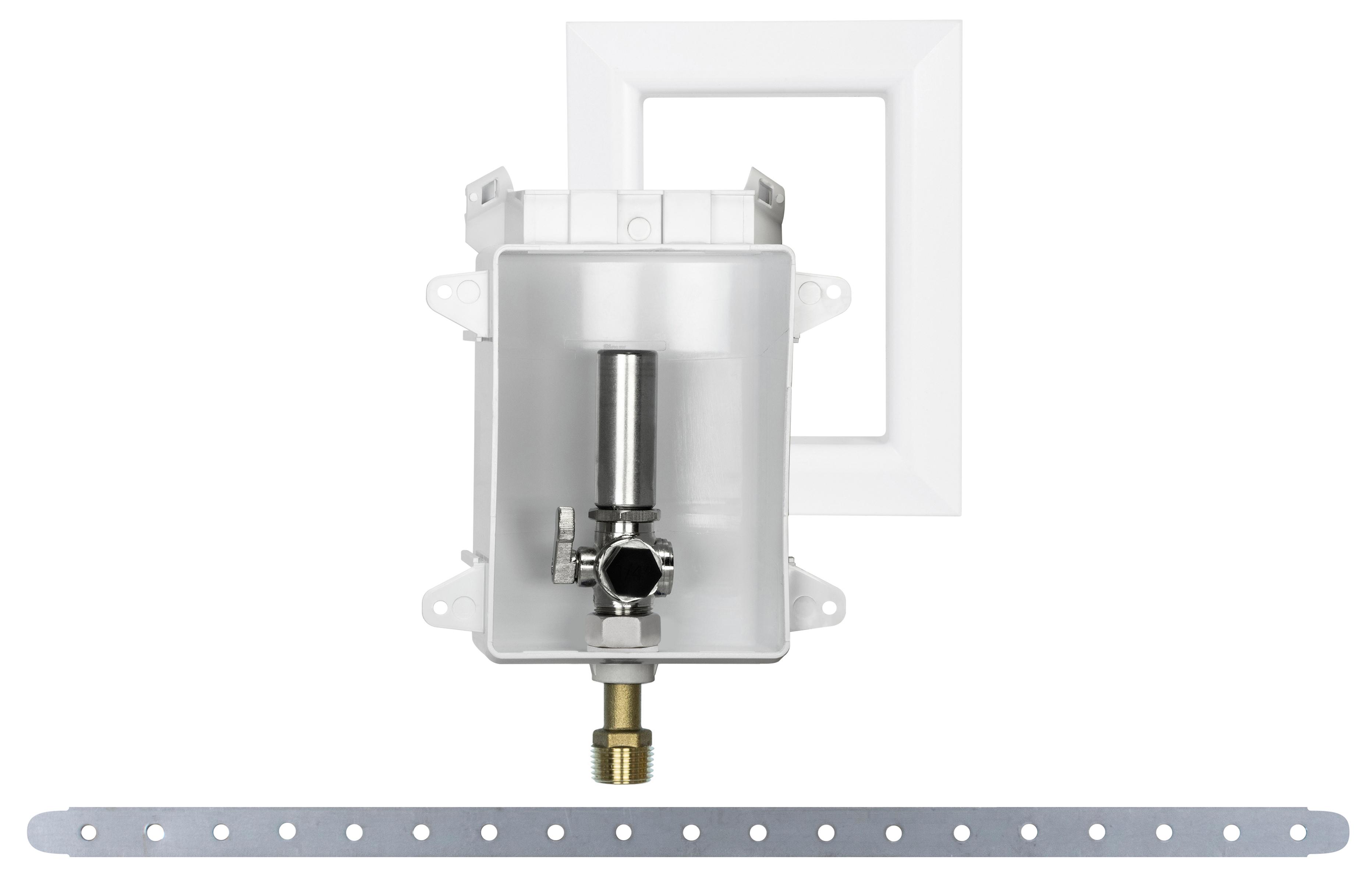

SIOUX CHIEF 696-G1011MF OXBOX 1/2INX3/8IN MIP/SWTXOD COMP TOILET/DISHWASHER OUTLET BOX WITH WATER HAMMER ARRESTER
Product Details
Attributes
Features
Resources
Sioux Chief OxBox™ Lead Free Toilet/Dishwasher Outlet Box, Series: 696, 1/2 in Inlet, 3/8 in Outlet, Solder Inlet, Compression Outlet, 250 psig, 250 deg F, ABS, 5-3/4 in W x 7-1/4 in H
Sioux Chief 696 series Ox Box 3/8 in compression outlet connection outlet box shall be used where necessary in plumbing supply systems. Box shall allow for mounting with supply line from top or bottom, on-stud or between studs. Unit shall be available with plain valve or valve and water hammer arrester. Arrester shall be certified to ASSE 1010 and shall be UPC listed. Metal support bracket shall install into top track of box for between stud configuration. Outlet connection shall be generally3/8 in.
- Patent No 7,360,553 and no 7,735,511
- ABS boxes mount securely to stud or over studs
- Allows for straight and secure supply stops recessed into the wall
- Eliminates backbreaking labor of cleaning stub outs and installing supply stops
- Debris covers included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valves with 3/8 in OD compression outlet connections
- Standard pack (supply box, frame, bracket, debris cover)
Product Details
Sioux Chief OxBox™ Lead Free Toilet/Dishwasher Outlet Box, Series: 696, 1/2 in Inlet, 3/8 in Outlet, Solder Inlet, Compression Outlet, 250 psig, 250 deg F, ABS, 5-3/4 in W x 7-1/4 in H
Sioux Chief 696 series Ox Box 3/8 in compression outlet connection outlet box shall be used where necessary in plumbing supply systems. Box shall allow for mounting with supply line from top or bottom, on-stud or between studs. Unit shall be available with plain valve or valve and water hammer arrester. Arrester shall be certified to ASSE 1010 and shall be UPC listed. Metal support bracket shall install into top track of box for between stud configuration. Outlet connection shall be generally3/8 in.
Attributes
Features
- Patent No 7,360,553 and no 7,735,511
- ABS boxes mount securely to stud or over studs
- Allows for straight and secure supply stops recessed into the wall
- Eliminates backbreaking labor of cleaning stub outs and installing supply stops
- Debris covers included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valves with 3/8 in OD compression outlet connections
- Standard pack (supply box, frame, bracket, debris cover)
