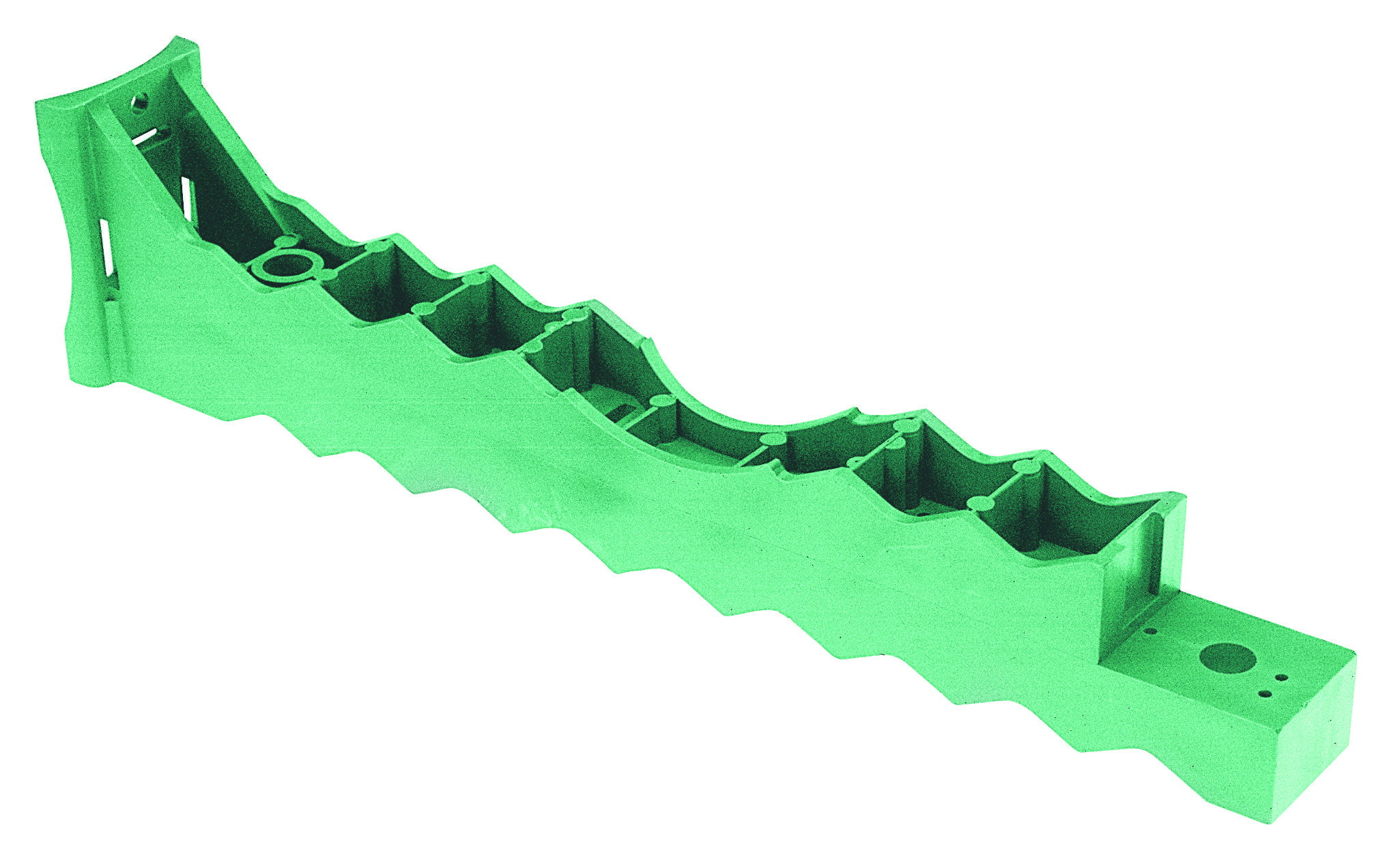

SIOUX CHIEF 570 Image 1

SIOUX CHIEF 570 PIPE TITAN BRACKET

MFR Part #: 570
SKU #: 1283665
Brand: Sioux Chief
UPC: 400051636119
Sioux Chief PipeTitan™ 570 Bracket, 13/32 in Hole, ABS
IAPMO Certified

Sioux Chief PipeTitan™ Bracket, Series: 570, 13/32 in, ABS, Green, 11 in L x 1-5/8 in W x 1-1/2 in H

Sioux Chief 570 series Pipe Titan™ shall be used where necessary for bracketing applications. Bracket shall allow fastening on top or bottom edge. Molded pipe cradles shall be 1 in on-center for quick and easy pipe alignment. Bracket shall have pilot holes for screws and slots for stainless steel bands. Bracket shall have holes on each end for 3/8 in thread rod for trapeze applications. Bracket shall prevent electrolysis and reduce noise caused by thermal expansion and contraction. Bracket and clamps shall be CPVC compatible. Bracket shall fit within a 2 x 4 wall when fastened to 2 in DWV pipe. Bracket shall be IAPMO listed.

Product Details

Sioux Chief PipeTitan™ Bracket, Series: 570, 13/32 in, ABS, Green, 11 in L x 1-5/8 in W x 1-1/2 in H

Sioux Chief 570 series Pipe Titan™ shall be used where necessary for bracketing applications. Bracket shall allow fastening on top or bottom edge. Molded pipe cradles shall be 1 in on-center for quick and easy pipe alignment. Bracket shall have pilot holes for screws and slots for stainless steel bands. Bracket shall have holes on each end for 3/8 in thread rod for trapeze applications. Bracket shall prevent electrolysis and reduce noise caused by thermal expansion and contraction. Bracket and clamps shall be CPVC compatible. Bracket shall fit within a 2 x 4 wall when fastened to 2 in DWV pipe. Bracket shall be IAPMO listed.

Attributes

Country Of Origin: US
Hole Size: 13/32 in
Color: Green
Dimensions: 11 in L x 1-5/8 in W x 1-1/2 in H
Material: ABS
Series: 570

Features

  • Compatible with copper, PEX and CPVC

Resources

Instruction/Installation Manual
