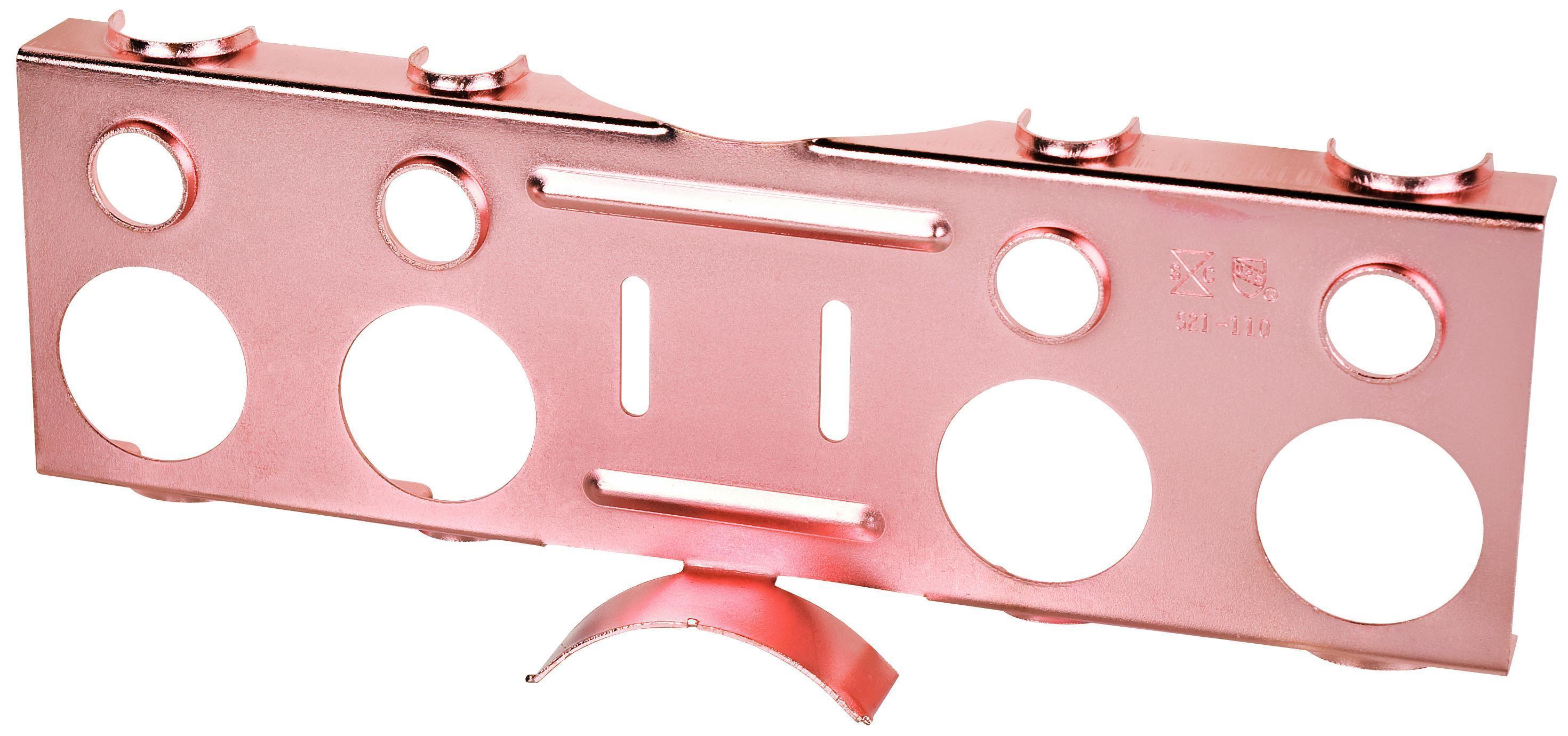

SIOUX CHIEF 521-110 18GA COPPER PLATED POSITIONING BRACKET
Product Details
Attributes
Features
Resources
Sioux Chief Positioning Bracket, Series: 521-110, 25 lb, Steel, Copper Plated, 2-7/8 in H x 9-3/4 in W x 3/4 in D, Import
Sioux Chief 521-110 Commercial Positioning bracket shall be used where necessary to support either 1/2 in or 3/4 in copper tube in chase applications for fixture stub outs or when necessary to support supply lines vertically. Bracket shall mount directly to the horizontal waste or vertical waste/vent pipe using a stainless steel band (provided). Bracket shall include 1/2 in holes to position copper stub outs on either 8 in or 4 in center lines. Bracket shall include 1/2 in notches to support copper pipe vertically on a 4 in center line. Bracket shall include 3/4 in notches to support copper pipe vertically on an 8 in center line. Bracket shall include four 1-11/32 in holes to receive isolating PipeEye™ grommets (purchased separately) to support 1/2 in, 3/4 in or 1 in CTS tube when desired. Bracket can be used to secure stub outs on island sinks when stud walls are not present.
- Aligns vertical or horizontal pipe in straight runs, especially between floor
- Attaches to vent or waste pipe
- Snap-lock stainless steel band and self-adhesive felt provided
- For positioning bracket for 1/2 in stub out on 4 in or 8 in center
- Secure bracket to waste or vent pipe using stainless steel band (provided)
- Insert tube into 1-11/32 in hole, position grommet around tube then push grommet into hole until tabs on backside of grommet engage the bracket
- 18 ga steel
Product Details
Sioux Chief Positioning Bracket, Series: 521-110, 25 lb, Steel, Copper Plated, 2-7/8 in H x 9-3/4 in W x 3/4 in D, Import
Sioux Chief 521-110 Commercial Positioning bracket shall be used where necessary to support either 1/2 in or 3/4 in copper tube in chase applications for fixture stub outs or when necessary to support supply lines vertically. Bracket shall mount directly to the horizontal waste or vertical waste/vent pipe using a stainless steel band (provided). Bracket shall include 1/2 in holes to position copper stub outs on either 8 in or 4 in center lines. Bracket shall include 1/2 in notches to support copper pipe vertically on a 4 in center line. Bracket shall include 3/4 in notches to support copper pipe vertically on an 8 in center line. Bracket shall include four 1-11/32 in holes to receive isolating PipeEye™ grommets (purchased separately) to support 1/2 in, 3/4 in or 1 in CTS tube when desired. Bracket can be used to secure stub outs on island sinks when stud walls are not present.
Attributes
Features
- Aligns vertical or horizontal pipe in straight runs, especially between floor
- Attaches to vent or waste pipe
- Snap-lock stainless steel band and self-adhesive felt provided
- For positioning bracket for 1/2 in stub out on 4 in or 8 in center
- Secure bracket to waste or vent pipe using stainless steel band (provided)
- Insert tube into 1-11/32 in hole, position grommet around tube then push grommet into hole until tabs on backside of grommet engage the bracket
- 18 ga steel
