RED-WHITE 034-41045 12 GEAR LUG BFV W/EPDM 918DBESG2
MFR Part #: 918-BESG-2-12
SKU #: 1021417
Brand: MAS™
UPC: 400003390861

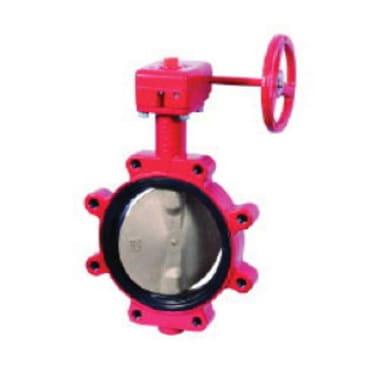

RED-WHITE TOYO 918-BESG-2-12 Lug Style Butterfly Valve, 12 in, Ductile Iron, 200 psi
ANSI/NSF 372 Specified | ASME B 16.5 Specified | MSS SP-67 Compliant
Product Details
Attributes
Features
Resources
RED-WHITE TOYO Lug Style Butterfly Valve, 12 in Nominal, 200 psi, 406 mm Top to Inlet Center, Ductile Iron Body, EPDM Seat, Stainless Steel Stem, Aluminum Bronze Disc, EPDM Softgoods, Gear Operator, Material Standard: ASTM A536, ASTM A276, Finish: Chrome-Plated, 650 mm L, Additional Information: Model 918-BESG-2
Nominal Size:12 in
Operator Type:Gear
Pressure Rating:200 psi
Additional Information:Model 918-BESG-2
Body Material:Ductile Iron
Dimensions:650 mm L
Disc Material:Aluminium Bronze
Finish:Chrome-Plated
Material Standard:ASTM A536, ASTM A276
Seat Material:EPDM
Softgoods Material:EPDM
Stem Material:Stainless steel
Top to Inlet Center:406 mm
- Vulcanized to the body
- The line painted on top of the stem indicates the disc direction
Product Details
RED-WHITE TOYO Lug Style Butterfly Valve, 12 in Nominal, 200 psi, 406 mm Top to Inlet Center, Ductile Iron Body, EPDM Seat, Stainless Steel Stem, Aluminum Bronze Disc, EPDM Softgoods, Gear Operator, Material Standard: ASTM A536, ASTM A276, Finish: Chrome-Plated, 650 mm L, Additional Information: Model 918-BESG-2
Attributes
Nominal Size: 12 in
Operator Type: Gear
Pressure Rating: 200 psi
Additional Information: Model 918-BESG-2
Body Material: Ductile Iron
Dimensions: 650 mm L
Disc Material: Aluminium Bronze
Finish: Chrome-Plated
Material Standard: ASTM A536, ASTM A276
Seat Material: EPDM
Softgoods Material: EPDM
Stem Material: Stainless steel
Top to Inlet Center: 406 mm
Features
- Vulcanized to the body
- The line painted on top of the stem indicates the disc direction
