MILWAUKEE 48-89-2530 Image 1

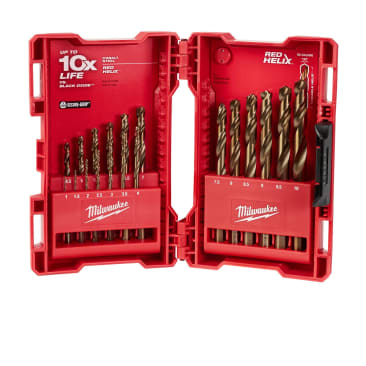

MILWAUKEE 48-89-2530 RED HELIX COBALT MET DRILL BITS (19 PACK)

MFR Part #: 48-89-2530
SKU #: 1257199
Brand: Milwaukee®
UPC: 045242519606
Milwaukee® RED HELIX™ 48-89-2530 Drill Bit Set, 1 mm Min Drill Bit, 10 mm Max Drill Bit, 135 deg Drill Point Angle, 19 Pieces, Cobalt
48-89-2501 1 mm, 48-89-2502 1.5 mm, 48-89-2503 2 mm, 48-89-2504 2.5 mm, 48-89-2505 3 mm, 48-89-2507 3.5 mm, 48-89-2508 4 mm, 48-89-25010 4.5 mm, 48-89-25012 5 mm, 48-89-2513 5.5 mm, 48-89-2514 6 mm, 48-89-2515 6.5 mm, 48-89-2517 7 mm, 48-89-2518 7.5 mm, 48-89-2519 8 mm, 48-89-2520 8.5 mm, 48-89-2521 9 mm, 48-89-2522 9.5 mm, 48-89-2523 10 mm Drill Bits
For twisting drilling and hard metal applications

Milwaukee® RED HELIX™ Drill Bit Set, Metric System of Measurement, 1 mm Minimum Drill Bit Size, 10 mm Maximum Drill Bit Size, 135 deg Drill Point Angle, 19 Piece, Specifications: Split Point, 2-Flute, Cobalt

The MILWAUKEE® RED HELIX™ 19PC Cobalt Metric Drill Bit Set is engineered for extreme durability and long life in hard metal applications. The QUAD EDGE™ tip delivers a precision start and features four cutting edges to create smaller chips for faster material removal and less heat leading to improved performance. Designed with a VARIABLE HELIX™ flute that begins with an aggressive 35° helical angle and ends at 15° for rapid chip removal. The bit also features an internal thicker tapered web that greatly increases strength, reducing premature breakage. Ideal for various tough metal applications including but not limited to Stainless Steel, Cast Iron, and Thick Metal. MILWAUKEE® RED HELIX™ Cobalt Drill Bits provide up to 15X life vs. black oxide drill bits. The set is organized in a customizable accessory case designed for use in PACKOUT™.

Product Details

Milwaukee® RED HELIX™ Drill Bit Set, Metric System of Measurement, 1 mm Minimum Drill Bit Size, 10 mm Maximum Drill Bit Size, 135 deg Drill Point Angle, 19 Piece, Specifications: Split Point, 2-Flute, Cobalt

The MILWAUKEE® RED HELIX™ 19PC Cobalt Metric Drill Bit Set is engineered for extreme durability and long life in hard metal applications. The QUAD EDGE™ tip delivers a precision start and features four cutting edges to create smaller chips for faster material removal and less heat leading to improved performance. Designed with a VARIABLE HELIX™ flute that begins with an aggressive 35° helical angle and ends at 15° for rapid chip removal. The bit also features an internal thicker tapered web that greatly increases strength, reducing premature breakage. Ideal for various tough metal applications including but not limited to Stainless Steel, Cast Iron, and Thick Metal. MILWAUKEE® RED HELIX™ Cobalt Drill Bits provide up to 15X life vs. black oxide drill bits. The set is organized in a customizable accessory case designed for use in PACKOUT™.

Attributes

Country Of Origin: China
Drill Point Angle: 135 deg
Finish: Cobalt
Number of Pieces: 19
Specifications: Split Point, 2-Flute
System of Measurement: Metric

Features

  • RED HELIX Technology combines QUAD EDGE Tip, VARIABLE HELIX Flute, and thicker tapered web
  • QUAD EDGE Tip Stays Sharper Longer
  • Thicker tapered web design increases bit strength
  • 3-FLAT SECURE-GRIP prevents bit from slipping in chuck
  • Laser etched size for easy identification

Resources

Specification Sheet
