LUTRON STCL-153M-WH Image 1

LUTRON STCL-153M-WH SUNNATA LED&DIM MULTI-LOC WHT

MFR Part #: STCL-153M-WH
SKU #: 1243651
Brand: Lutron®
UPC: 784276810920
Lutron® STCL-153M-WH Sunnata LED Dimmer Switch, 120 V, 1 Poles, White
For Lighting Control
UL 1472/CSA C22.2 184.1 | NOM | NEMA SSL-7A-2015 forward-phase compliant | FCC

Lutron®, STCL-153M-WH, Dimmer Switch, LED, Series: Sunnata, 120 V, 60 Hz Frequency, 1 Pole, LED/CFL Lamp, Paddle ON/OFF Control, NEMA SSL-7A Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, White, 4.69 in H x 2.94 in W Dimensions

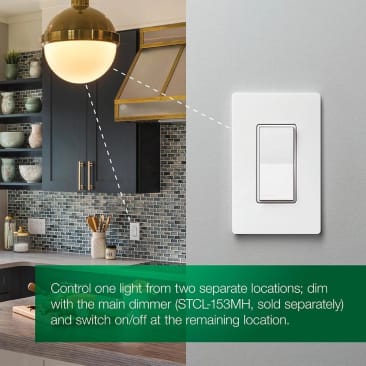

The Sunnata Touch LED+ dimmer switch with LED+ Technology features a large intuitive paddle to turn lights On/Off and a sleek touch bar to easily dim/brighten your lights. This touch dimmer switch is rated to control lighting loads up to 150W LED or 600W incandescent/halogen. Use with the Sunnata accessory switch (ST-AS-xx) to create a 3-way application or add more accessory switches to control from up to 10 locations in a multi-location application. The Sunnata Touch LED+ Dimmer provides dimming, while the Sunnata Accessory Switch (ST-AS-xx) allows for On/Off switching within the multi-location application; can also be used with an existing 3-way switch. Tap the top of the dimmer switch once for your favorite light level, set through MyLevel Personalization, and twice for full brightness; swipe your finger along the white LED lightbar to dim/brighten the lighting load. The smooth fade on and fade off allows your eyes to adjust comfortably to your determined light level; push and hold the Off button for 30 second delayed fade-to-off. No neutral required. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Product Details

Lutron®, STCL-153M-WH, Dimmer Switch, LED, Series: Sunnata, 120 V, 60 Hz Frequency, 1 Pole, LED/CFL Lamp, Paddle ON/OFF Control, NEMA SSL-7A Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, White, 4.69 in H x 2.94 in W Dimensions

The Sunnata Touch LED+ dimmer switch with LED+ Technology features a large intuitive paddle to turn lights On/Off and a sleek touch bar to easily dim/brighten your lights. This touch dimmer switch is rated to control lighting loads up to 150W LED or 600W incandescent/halogen. Use with the Sunnata accessory switch (ST-AS-xx) to create a 3-way application or add more accessory switches to control from up to 10 locations in a multi-location application. The Sunnata Touch LED+ Dimmer provides dimming, while the Sunnata Accessory Switch (ST-AS-xx) allows for On/Off switching within the multi-location application; can also be used with an existing 3-way switch. Tap the top of the dimmer switch once for your favorite light level, set through MyLevel Personalization, and twice for full brightness; swipe your finger along the white LED lightbar to dim/brighten the lighting load. The smooth fade on and fade off allows your eyes to adjust comfortably to your determined light level; push and hold the Off button for 30 second delayed fade-to-off. No neutral required. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Attributes

ColorWhite
ControlPaddle On/Off
Dimensions4.69 in H x 2.94 in W
Enclosure TypeNEMA SSL-7A
Frequency Rating60 Hz
Lamp TypeLED/CFL
Mounting TypeWall
Number of Poles1
Operation ModeOn/Off
SeriesSunnata
Temperature Rating32 to 104 deg F
Terminal TypeScrew
TypeLED
Voltage Rating120 V

Features

  • Works with up to 150W of dimmable LEDs or up to 600 Wof incandescent/halogen bulbs
  • No Neutral Required
  • Touch or swipe the white light bar to brighten/dim your lights, lightbar also doubles as a locator light to help find the dimmer switch in the dark
  • Press and hold Off button for 30 seconds for fade-to-off
