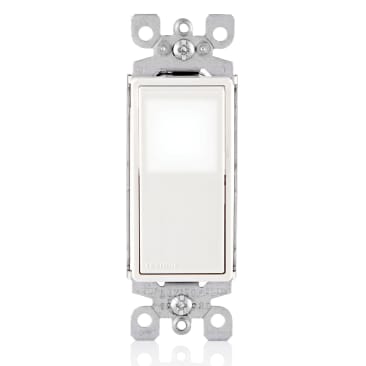

LEVITON L5613-2W DECORA 15A 120/277V 3-WAY ILLUMINATED ROCKER SWITCH WHITE
MFR Part #: L5613-2W
SKU #: 1239231
Brand: Leviton®
UPC: 7847768200
Leviton® Decora Plus™ L5613-2W 3-Way LED Illuminated AC Quiet Switch, 120/277 V AC, 15 A, 1/2 hp at 120 V, 2 hp at 240 to 277 V Power Rating
2 years Limited
Entryways, Kitchens, Bathrooms, Children's Rooms, Hallways, Basements, Utility/Laundry Rooms, Garages and Residential Applications
cULus Listed | NOM Compliant | UL Listed
Product Details
Attributes
Features
Resources
Leviton® Decora Plus™ AC Quiet Switch, 3-Way LED Illuminated, 120/277 V AC, 15 A, 1/2 hp at 120 V, 2 hp at 240 to 277 V Power, 3 Pole, Rocker Actuator, Back/Side Wired/QuickWire® Push-In Terminal, Thermoplastic, White, 1.4 in W x 4.2 in H
Amperage Rating:15 A
Country Of Origin:Mexico
Number of Poles:3
Voltage Rating:120/277 V AC
Actuator:Rocker
Color:White
Dimensions:1.4 in W x 4.2 in H
Material:Thermoplastic
Power Rating:1/2 hp at 120 V, 2 hp at 240 to 277 V
Series:Decora
Terminal Type:Back/Side Wired/QuickWire® Push-In
Type:3-Way LED Illuminated
- Designed to work with LED, CFL and incandescent bulbs, no neutral required
- Switch remains illuminated in the Off position, so it is easy to locate in a dark room
- White LED light inside the switch provides a refreshed and modern appearance
- Replaces any standard switch
- Decora® model compatible with Decora® wallplates and Decora Plus™ screwless wallplates, wallplates sold separately
- Features QuickWire® push-in, back and side wiring for easy installation
- QuickWire® push-in terminals accept #14 AWG solid copper wire only
- Back and side wire terminal screws accept up to #12 AWG copper or copper clad wire
- Complements every decor
Product Details
Leviton® Decora Plus™ AC Quiet Switch, 3-Way LED Illuminated, 120/277 V AC, 15 A, 1/2 hp at 120 V, 2 hp at 240 to 277 V Power, 3 Pole, Rocker Actuator, Back/Side Wired/QuickWire® Push-In Terminal, Thermoplastic, White, 1.4 in W x 4.2 in H
Attributes
Amperage Rating: 15 A
Country Of Origin: Mexico
Number of Poles: 3
Voltage Rating: 120/277 V AC
Actuator: Rocker
Color: White
Dimensions: 1.4 in W x 4.2 in H
Material: Thermoplastic
Power Rating: 1/2 hp at 120 V, 2 hp at 240 to 277 V
Series: Decora
Terminal Type: Back/Side Wired/QuickWire® Push-In
Type: 3-Way LED Illuminated
Features
- Designed to work with LED, CFL and incandescent bulbs, no neutral required
- Switch remains illuminated in the Off position, so it is easy to locate in a dark room
- White LED light inside the switch provides a refreshed and modern appearance
- Replaces any standard switch
- Decora® model compatible with Decora® wallplates and Decora Plus™ screwless wallplates, wallplates sold separately
- Features QuickWire® push-in, back and side wiring for easy installation
- QuickWire® push-in terminals accept #14 AWG solid copper wire only
- Back and side wire terminal screws accept up to #12 AWG copper or copper clad wire
- Complements every decor
