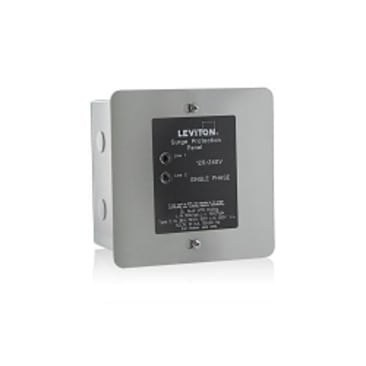

LEVITON 51120-1 120/240V 1PH TYPE 2 SURGE PANEL GREY
Product Details
Attributes
Features
Resources
Leviton® Surge Protective Device, Series: 51120, 20 A, 120/240 V AC Electrical Rating, 50/60 Hz Frequency, 3 Wires, 10 kA Short Circuit, 50 kA Peak Surge Current, 3 kA Nominal Discharge, Modes of Protection: L-N/L-L, LED/Noise Filtering Indicator, 1 ph, Environmental Conditions: -10 to 60 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, UL 94 V-2 Flammability, NEMA 1 Enclosure, Panel Mounting, Lead Wire Terminal, Steel, 7-1/2 in H x 4-1/4 in W x 3-1/4 in D Dimensions
Leviton® 51120 panel mount surge arresters are designed for use in homes and apartment buildings at the service entrance, electrical utility meter or other branch panel locations. They are also ideal for use in pumping stations, radio towers and light commercial buildings where protection from high energy, high voltage transients is desired. These surge arresters are available for 1-phase and three-phase applications.
- Single high energy solid state semiconductor surge suppression circuitry per phase
- Real time diagnostic visual indicator shows power and suppression status for each protected phase
- Each phase provided with independent thermal fuse protection
- Feature a low VPR to ensure protection of sensitive electronic devices including LCD TVs, PDAs and computers
- Standard J-box enclosure with pre-punched standard knockouts can be easily surface mounted in typical frame construction
- Internal DIN rail module provides for easy replacement (on type 1 outdoor unit only)
- All versions are compatible with Leviton® Decora® home controls
- Parallel hardwired via 12 AWG wire connection
- Without surge counter
Product Details
Leviton® Surge Protective Device, Series: 51120, 20 A, 120/240 V AC Electrical Rating, 50/60 Hz Frequency, 3 Wires, 10 kA Short Circuit, 50 kA Peak Surge Current, 3 kA Nominal Discharge, Modes of Protection: L-N/L-L, LED/Noise Filtering Indicator, 1 ph, Environmental Conditions: -10 to 60 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, UL 94 V-2 Flammability, NEMA 1 Enclosure, Panel Mounting, Lead Wire Terminal, Steel, 7-1/2 in H x 4-1/4 in W x 3-1/4 in D Dimensions
Leviton® 51120 panel mount surge arresters are designed for use in homes and apartment buildings at the service entrance, electrical utility meter or other branch panel locations. They are also ideal for use in pumping stations, radio towers and light commercial buildings where protection from high energy, high voltage transients is desired. These surge arresters are available for 1-phase and three-phase applications.
Attributes
Features
- Single high energy solid state semiconductor surge suppression circuitry per phase
- Real time diagnostic visual indicator shows power and suppression status for each protected phase
- Each phase provided with independent thermal fuse protection
- Feature a low VPR to ensure protection of sensitive electronic devices including LCD TVs, PDAs and computers
- Standard J-box enclosure with pre-punched standard knockouts can be easily surface mounted in typical frame construction
- Internal DIN rail module provides for easy replacement (on type 1 outdoor unit only)
- All versions are compatible with Leviton® Decora® home controls
- Parallel hardwired via 12 AWG wire connection
- Without surge counter
