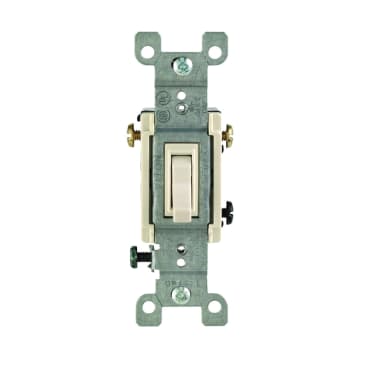

LEVITON 1453-T Image 2

LEVITON 1453-T 15A 120V 3-WAY TOGGLE SWITCH LIGHT ALMOND

MFR Part #: 1453-T
SKU #: 1060812
Brand: Leviton®
UPC: 078477300251
Leviton® 1453-T 3-Way Toggle Switch, 120 V AC, 15 A
Residential Applications
CSA File No. LR3413 | NOM 057 | UL Listed File No. E7458 | UL 94V-2 Flammability Rating

Leviton® Toggle Switch, 3-Way, 120 V AC, 15 A, 1/2 hp at 120V AC, 2 hp at 240 V AC Contact, Cam Actuator, Wall Plate Mounting, Push-In/Side Wire Terminal, Thermoplastic, Light Almond, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.2 in H x 1.31 in W x 1.01 in D Dimensions

Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton® traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.

Product Details

Leviton® Toggle Switch, 3-Way, 120 V AC, 15 A, 1/2 hp at 120V AC, 2 hp at 240 V AC Contact, Cam Actuator, Wall Plate Mounting, Push-In/Side Wire Terminal, Thermoplastic, Light Almond, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.2 in H x 1.31 in W x 1.01 in D Dimensions

Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton® traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.

Attributes

Amperage Rating: 15 A
Country Of Origin: US
Voltage Rating: 120 V AC
Actuator: Cam
Color: Light Almond
Contact Rating: 1/2 hp at 120V AC, 2 hp at 240 V AC
Dimensions: 4.2 in H x 1.31 in W x 1.01 in D
Environmental Conditions: -40 to 65 deg C Operating Temperature
Material: Thermoplastic
Mounting: Wall Plate
Terminal Type: Push-In/Side Wire
Type: 3-Way

Features

  • Faster installation with combination of side wiring and quick wire push-in wiring
  • Large head triple-drive combination screws (standard, phillips and robertson) for fast wiring installation
  • Impact-resistant, durable thermoplastic toggle and frame
  • Quick wire push-in terminals accept no 14 AWG solid copper wire only
  • Terminal screws accept up to no 12 AWG copper or copper clad wire
  • Durable thermoplastic toggle and frame

Resources

SDS
Specification Sheet
