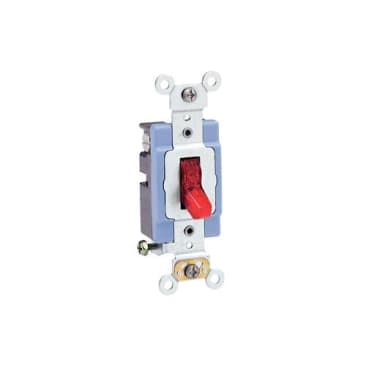

LEVITON 1201-PLR 15A 120/277V 1-POLE PILOT LIGHT TOGGLE SWITCH RED
MFR Part #: 1201-PLR
SKU #: 0770806
Brand: Leviton®
UPC: 078477223529
Leviton® 1201-PLR Illuminated ON Self-Grounding AC Quiet Toggle Switch, 120 VAC, 15 A, 1/2 hp Power Rating, SP Contact
10 Years Limited
Commercial Applications
RoHS Compliant | ANSI C73 | CSA C22.2 No. 111 File No. 152105 | NOM 057 | Federal Specification WS896E File No. E7458 | UL 20 | UL94 V-2 Flammability Rating | ANSI C-73 | UL Fed Spec WS896E File No. E7458
Product Details
Attributes
Features
Resources
Leviton®, 1201-PLR, AC Quiet Toggle Switch, Illuminated ON Self-Grounding, 120 VAC, 15 A, 1/2 hp Power, 1/2 hp at 120 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Red, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 1.6 in D Dimensions
Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Amperage Rating:15 A
Country Of Origin:Mexico
Number of Poles:1
Voltage Rating:120 VAC
Actuator:Toggle
Color:Red
Contact Rating:1/2 hp at 120 VAC
Dimensions:46 in H x 1.31 in W x 1.6 in D
Enclosure:NEMA WD-1/WD-6
Environmental Conditions:-40 to 65 deg C Operating Temperature
Material:Thermoplastic
Mounting:Surface
Operating Cycles:50000 Cycles
Power Rating:1/2 hp
Terminal Type:Back/Side Wire
Type:Illuminated ON Self-Grounding
- Pilot light and lighted handle switches provide top performance in punishing industrial applications
- Self-grounding clip (self grounding when used with a grounded metal wall box)
- Lighted handle illuminated when load is OFF
- Pilot light toggle illuminated when load is ON
- 1/2 hp at 120 VAC power rating
Product Details
Leviton®, 1201-PLR, AC Quiet Toggle Switch, Illuminated ON Self-Grounding, 120 VAC, 15 A, 1/2 hp Power, 1/2 hp at 120 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Red, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 1.6 in D Dimensions
Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Attributes
Amperage Rating: 15 A
Country Of Origin: Mexico
Number of Poles: 1
Voltage Rating: 120 VAC
Actuator: Toggle
Color: Red
Contact Rating: 1/2 hp at 120 VAC
Dimensions: 46 in H x 1.31 in W x 1.6 in D
Enclosure: NEMA WD-1/WD-6
Environmental Conditions: -40 to 65 deg C Operating Temperature
Material: Thermoplastic
Mounting: Surface
Operating Cycles: 50000 Cycles
Power Rating: 1/2 hp
Terminal Type: Back/Side Wire
Type: Illuminated ON Self-Grounding
Features
- Pilot light and lighted handle switches provide top performance in punishing industrial applications
- Self-grounding clip (self grounding when used with a grounded metal wall box)
- Lighted handle illuminated when load is OFF
- Pilot light toggle illuminated when load is ON
- 1/2 hp at 120 VAC power rating
