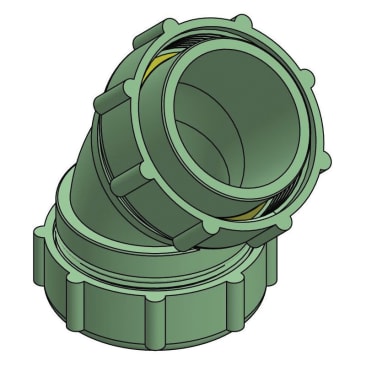

LABLINE 156219 Image 1

LABLINE W214 4X45D FR-PP LOOSE NUT 1/8 BEND LJXLN

MFR Part #: 156219
SKU #: 1205506
Brand: IPEX | Labline®
UPC: 622454033412
Labline® 156219 Bend, 4 in Mechanical Joint x 4 in Loose Nut, Polypropylene, SCH 40
Hospitals, Industrial Plants, Pharmaceuticals Facilities and Chemical Manufacturing, Schools and University Laboratories Applications
ASTM D4101/D635/F1412 | CSA B181.3 | NSF 14 | UPC Listed

Labline® Bend, 45 deg Bend Fitting, 4 in Connection Size 1, Connection Type 1: Mechanical Joint, 4 in Connection Size 2, Connection Type 2: Loose Nut, Mechanical Joint|Loose Nut Connection, Polypropylene, Material Construction: Polypropylene, SCH 40, -10 to 212 deg F

Labline acid waste systems feature a state-of-the-art mechanical joining system that uses no-heat Elastolive for high-integrity joints in seconds. Labline has displaced more expensive, difficult-to-install glass and metal systems and the need for fusing, caulking or welding of joints. Components are made from specially formulated polypropylene with an operating temperature range from -23 Degrees C to 100 Degrees C (-10 Degrees F to 212 Degrees F). The high-performance, mechanical-joint system is easy to install and disassemble. Ideal for modular systems and remodeling, it is designed with heavy-duty, all thermoplastic fittings that are reusable. These durable, all-plastic fittings allow for rapid installation and trouble-free service, even in difficult areas. Labline loose nut 1/8 bend (45 Degrees ) (MJ x LN) fittings come in 1-1/2", 2", 3" and 4" sizes furnished assembled with no-heat olives and union nuts.

Product Details

Labline® Bend, 45 deg Bend Fitting, 4 in Connection Size 1, Connection Type 1: Mechanical Joint, 4 in Connection Size 2, Connection Type 2: Loose Nut, Mechanical Joint|Loose Nut Connection, Polypropylene, Material Construction: Polypropylene, SCH 40, -10 to 212 deg F

Labline acid waste systems feature a state-of-the-art mechanical joining system that uses no-heat Elastolive for high-integrity joints in seconds. Labline has displaced more expensive, difficult-to-install glass and metal systems and the need for fusing, caulking or welding of joints. Components are made from specially formulated polypropylene with an operating temperature range from -23 Degrees C to 100 Degrees C (-10 Degrees F to 212 Degrees F). The high-performance, mechanical-joint system is easy to install and disassemble. Ideal for modular systems and remodeling, it is designed with heavy-duty, all thermoplastic fittings that are reusable. These durable, all-plastic fittings allow for rapid installation and trouble-free service, even in difficult areas. Labline loose nut 1/8 bend (45 Degrees ) (MJ x LN) fittings come in 1-1/2", 2", 3" and 4" sizes furnished assembled with no-heat olives and union nuts.

Attributes

Nominal Size4 x 4 in
Connection Size 14 in
Connection Size 24 in
Connection TypeMechanical Joint|Loose Nut
Connection Type 1Mechanical Joint
Connection Type 2Loose Nut
Fitting Type45 deg Bend
MaterialPolypropylene
Material ConstructionPolypropylene
Schedule RatingSCH 40
Temperature Rating-10 to 212 deg F

Features

  • Loose nut 1/8 bend (45 Degrees ) (MJ x LN) in 1-1/2", 2", 3" and 4" sizes
  • For use with Labline acid waste systems
  • High-performance mechanical-joint system
  • Corrosion-resistant, all-plastic construction
  • Easy to install, disassemble and reuse
  • Ideal for modular systems and remodeling
  • NSF listed
