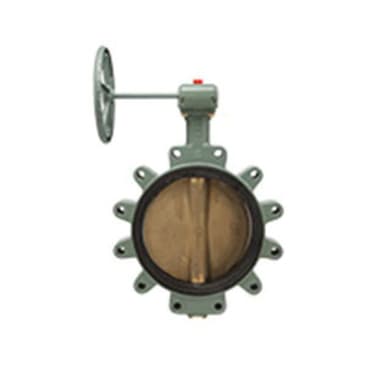

KITZ 6121EG-916 Image 1

KITZ 056-41089 16 GEAR LUG BFV W/EPDM 6121EG

MFR Part #: 6121EG-916
SKU #: 1020481
Brand: KITZ
UPC: 400003294688
KITZ 6121EG-916 Bi-Directional Butterfly Valve, 16 in, Flanged, Ductile Iron, 150 psi
API 609 Category A Standard | MSS SP-67/SP-25 | NSF/ANSI 372

KITZ Bi-Directional Butterfly Valve, 16 in Nominal, Flanged Connection, 150 psi, 19.76 in Top to Inlet Center, Ductile Iron Body, EPDM Seat, Stainless Steel Stem, Aluminum Bronze Disc, EPDM/NBR Softgoods, Gear Operator, 10080 Cv Flow Coefficient (Cv), -20 to 225 deg F, Material Standard: ASTM A536 64-45-12, ASTM A276, 33.19 in L x 4 in W, Additional Information: Model 6121EG

Product Details

KITZ Bi-Directional Butterfly Valve, 16 in Nominal, Flanged Connection, 150 psi, 19.76 in Top to Inlet Center, Ductile Iron Body, EPDM Seat, Stainless Steel Stem, Aluminum Bronze Disc, EPDM/NBR Softgoods, Gear Operator, 10080 Cv Flow Coefficient (Cv), -20 to 225 deg F, Material Standard: ASTM A536 64-45-12, ASTM A276, 33.19 in L x 4 in W, Additional Information: Model 6121EG

Attributes

Connection Type: Flanged
Nominal Size: 16 in
Operator Type: Gear
Pressure Rating: 150 psi
Additional Information: Model 6121EG
Body Material: Ductile Iron
Dimensions: 33.19 in L x 4 in W
Disc Material: Aluminium Bronze
Flow Coefficient (Cv): 10080 Cv
Material Standard: ASTM A536 64-45-12, ASTM A276
Seat Material: EPDM
Softgoods Material: EPDM/NBR
Stem Material: Stainless steel
Temperature Rating: -20 to 225 deg F
Top to Inlet Center: 19.76 in

Features

  • Bonded seat
  • ISO 5211 mounting pad
