KITZ 052-10208 1 IP GLOBE VLV 01
MFR Part #: 01-100
SKU #: 1079713
Brand: KITZ
UPC: 400005720574

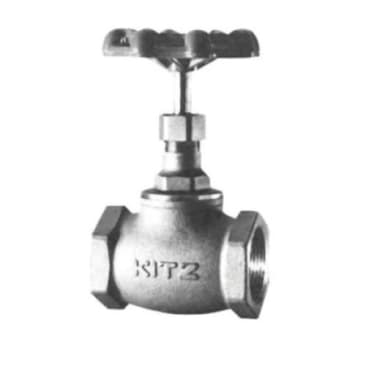

KITZ 01-100 Globe Valve, 1 in, FNPT, Bronze, 150 psi
ASME B1.20.1
Product Details
Attributes
Resources
KITZ Globe Valve, 1 in Nominal, FNPT Connection, 150 psi, Pressure Class: 100, Gas, Non-Shock Cold Water, Oil, Saturated Steam Media, 2.48 in Inlet to Outlet Length, 3.7 in Top to Inlet Center, Bronze Body, Brass Stem, Bronze Disc, Graphite Packing, Zinc Handle, Handwheel Operator, 7.4 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B584-C84400, ASTM B86
Nominal Size:1 in
Pressure Class:100
Body Material:Bronze
Connection Type:FNPT
Disc Material:Bronze
Flow Coefficient (Cv):7.4 Cv
Handle Material:Zinc
Inlet to Outlet Length:2.48 in
Material Standard:ASTM B584-C84400, ASTM B86
Media:Gas, Non-Shock Cold Water, Oil, Saturated Steam
Operator Type:Handwheel
Packing Material:Graphite
Pressure Rating:150 psi
Stem Material:Brass
Temperature Rating:406 deg F
Top to Inlet Center:3.7 in
Product Details
KITZ Globe Valve, 1 in Nominal, FNPT Connection, 150 psi, Pressure Class: 100, Gas, Non-Shock Cold Water, Oil, Saturated Steam Media, 2.48 in Inlet to Outlet Length, 3.7 in Top to Inlet Center, Bronze Body, Brass Stem, Bronze Disc, Graphite Packing, Zinc Handle, Handwheel Operator, 7.4 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B584-C84400, ASTM B86
Attributes
Nominal Size: 1 in
Pressure Class: 100
Body Material: Bronze
Connection Type: FNPT
Disc Material: Bronze
Flow Coefficient (Cv): 7.4 Cv
Handle Material: Zinc
Inlet to Outlet Length: 2.48 in
Material Standard: ASTM B584-C84400, ASTM B86
Media: Gas, Non-Shock Cold Water, Oil, Saturated Steam
Operator Type: Handwheel
Packing Material: Graphite
Pressure Rating: 150 psi
Stem Material: Brass
Temperature Rating: 406 deg F
Top to Inlet Center: 3.7 in
