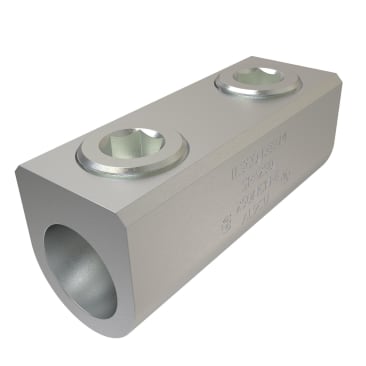

ILSCO SPA-250 ALUMINUM SPLICER/REDUCER 25KCMIL-6
MFR Part #: SPA-250
SKU #: 1224354
Brand: ILSCO®
UPC: 783669857047
ILSCO® ClearChoice® SPA-250 Type SPA Dual Rated Splicer/Reducer, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 2 Screws, Aluminum
For use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques
CSA File No. LR29601 | UL 486A-B | UL 453G File No. E6207 | ECCN EAR99 | PROP65: Cancer - www.p65warnings.ca.gov
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Splicer/Reducer, Type SPA Dual Rated, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 2 Screws, 2000 V AC, Specifications: 5/16 in Hex, 5/8 in Dia Screw, 90 deg C, Aluminum, Electro-Plated Tin, 2.312 in L x 0.875 in W x 1 in H Dimensions
Conductor Size:6 AWG to 250 kcmil
Conductor Type:Aluminum/Copper
Country Of Origin:Mexico
Dimensions:2.312 in L x 0.875 in W x 1 in H
Finish:Electro-Plated Tin
Material:Aluminum
Number of Screws:2
Specifications:5/16 in Hex, 5/8 in Dia Screw
Temperature Rating:90 deg C
Type:Type SPA Dual Rated
Voltage Rating:2000 V AC
- Manufactured from high strength 6061-T6 aluminum alloy
- Rounded bottoms facilitates taping
- Electro tin plated for low contact resistance
- Chamfered wire entry provides ease of installation
- Solid wire stop in center prevents dissimilar metals coming into contact
- Large screw diameters ensures all wire strands are held securely
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Dual-rated for aluminum and copper conductor
- 350 to 2 have rounded bottoms and 1000 to 500 have flat bottoms
Product Details
ILSCO® ClearChoice® Splicer/Reducer, Type SPA Dual Rated, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 2 Screws, 2000 V AC, Specifications: 5/16 in Hex, 5/8 in Dia Screw, 90 deg C, Aluminum, Electro-Plated Tin, 2.312 in L x 0.875 in W x 1 in H Dimensions
Attributes
Conductor Size: 6 AWG to 250 kcmil
Conductor Type: Aluminum/Copper
Country Of Origin: Mexico
Dimensions: 2.312 in L x 0.875 in W x 1 in H
Finish: Electro-Plated Tin
Material: Aluminum
Number of Screws: 2
Specifications: 5/16 in Hex, 5/8 in Dia Screw
Temperature Rating: 90 deg C
Type: Type SPA Dual Rated
Voltage Rating: 2000 V AC
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Rounded bottoms facilitates taping
- Electro tin plated for low contact resistance
- Chamfered wire entry provides ease of installation
- Solid wire stop in center prevents dissimilar metals coming into contact
- Large screw diameters ensures all wire strands are held securely
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Dual-rated for aluminum and copper conductor
- 350 to 2 have rounded bottoms and 1000 to 500 have flat bottoms
