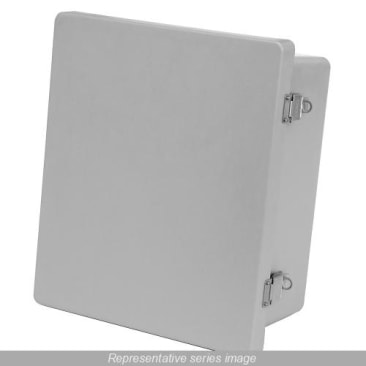

HAMMOND PJ864L 8X6X4 NEMA 4X ENCLOSURE
MFR Part #: PJ864L
SKU #: 1037414
Brand: Hammond®
UPC: 62398095108
Hammond® PJ864L Non-Metallic Junction Box, 8 in H x 6 in W x 4 in D, Continuous Hinged Cover, NEMA 3R/4X/13 NEMA Rating, Polyester Plastic
1 Year
Mounting Hardware
For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures and ideal in applications with high temperatures or highly corrosive environments
CSA Certified | CE Marking | RoHS Compliant | UL Listed
Product Details
Attributes
Features
Resources
Hammond® Junction Box, Non-Metallic, Series: PJ Series, 8 in Height, 6 in Width, 4 in Depth, NEMA 3R/4X/13 NEMA Rating, Continuous Hinged Cover, 4.88 in W x 6.75 in H Panel, Lock: Snap Latch, 192 cu-in Capacity, Wall Mounting, -40 to 130 deg C, Polyester Plastic, Light Gray
Capacity:192 cu-in
Color:Light Gray
Country Of Origin:US
Cover Type:Continuous Hinged
Depth:4 in
Height:8 in
Lock:Snap Latch
Mounting Type:Wall
NEMA Rating:NEMA 3R/4X/13
Series:PJ Series
Temperature Rating:-40 to 130 deg C
Type:Non-Metallic
Width:6 in
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- #10-32 threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Stainless steel butterfly type "twist latch" door fasteners
- Stainless steel draw type "snap latch" door fasteners
- Door fasteners include a provision for padlocking
- Twist latch enclosures are available with bonded polycarbonate viewing windows
- Door is supported with a continuous stainless steel hinge
- Captive oil-resistant gasket provides a positive seal
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure
- Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure
- Impact index of 6.78 J (5 ft/lb)
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet
- Ideal in applications with high temperatures or highly corrosive environments
- IP66 rating
Product Details
Hammond® Junction Box, Non-Metallic, Series: PJ Series, 8 in Height, 6 in Width, 4 in Depth, NEMA 3R/4X/13 NEMA Rating, Continuous Hinged Cover, 4.88 in W x 6.75 in H Panel, Lock: Snap Latch, 192 cu-in Capacity, Wall Mounting, -40 to 130 deg C, Polyester Plastic, Light Gray
Attributes
Capacity: 192 cu-in
Color: Light Gray
Country Of Origin: US
Cover Type: Continuous Hinged
Depth: 4 in
Height: 8 in
Lock: Snap Latch
Mounting Type: Wall
NEMA Rating: NEMA 3R/4X/13
Series: PJ Series
Temperature Rating: -40 to 130 deg C
Type: Non-Metallic
Width: 6 in
Features
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- #10-32 threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Stainless steel butterfly type "twist latch" door fasteners
- Stainless steel draw type "snap latch" door fasteners
- Door fasteners include a provision for padlocking
- Twist latch enclosures are available with bonded polycarbonate viewing windows
- Door is supported with a continuous stainless steel hinge
- Captive oil-resistant gasket provides a positive seal
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure
- Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure
- Impact index of 6.78 J (5 ft/lb)
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet
- Ideal in applications with high temperatures or highly corrosive environments
- IP66 rating
