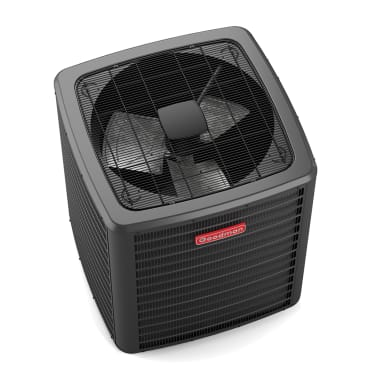

GOODMAN GSXH506010 5.0 TON 15.2 SEER2 2-STAGE AIR CONDITIONER
MFR Part #: GSXH506010
SKU #: 1262180
Brand: Goodman®
UPC: 400050945359
Goodman® GSXH5 GSXH506010 Split System Air Conditioner Condenser, 208/230 V, 60000 Btu/hr
10 Year Limited Parts
AHRI Certified | ENERGY STAR Certified | ETL Listed | UL 60335-2-40
Product Details
Attributes
Features
Resources
Goodman® Split System Air Conditioner Condenser, Model: GSXH5, 5 ton Nominal Capacity, 60000 Btu/hr, 208/230 V, 32.4 A, 1/3 hp, 60 Hz, 1 ph Phase, Scroll Compressor, 14.6 to 15.5 SEER, 2 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 76 dBA Sound Level, C Connection, 50 A Fuse Rating, ECM Motor, 65 to 115 deg F, Steel, Finish: Galvanized/Powder-Coated, Gray, 41-5/8 in H x 35-1/2 in W x 35-1/2 in D, Additional Information: TXV Expansion Device
Dimensions:41-5/8 in H x 35-1/2 in W x 35-1/2 in D
Material:Steel
Motor Type:ECM
Nominal Capacity:5 ton
Refrigerant Type:R-410A
SEER Rating:14.6 to 15.5
Sound Level:76 dBA
Suction Line Size:7/8 in
Additional Information:TXV Expansion Device
Amperage Rating:32.4 A
BTU Rating:60000 Btu/hr
Color:Gray
Compressor Type:Scroll
Connection Type:C
Finish:Galvanized/Powder-Coated
Frequency Rating:60 Hz
Fuse Rating:50 A
HP Rating:1/3 hp
Liquid Line Size:3/8 in
Model:GSXH5
Number of Stages:2
Phase:1 ph
Temperature Rating:65 to 115 deg F
Voltage Rating:208/230 V
- High efficiency scroll compressor
- Factory installed filter drier
- Fully charged for 15 ft of tubing length
- Copper tube/enhanced aluminum fin coil - 5 mm dia on 1.5 - 3.0T
- Service valves with sweat connections and easy to access gauge ports
Product Details
Goodman® Split System Air Conditioner Condenser, Model: GSXH5, 5 ton Nominal Capacity, 60000 Btu/hr, 208/230 V, 32.4 A, 1/3 hp, 60 Hz, 1 ph Phase, Scroll Compressor, 14.6 to 15.5 SEER, 2 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 76 dBA Sound Level, C Connection, 50 A Fuse Rating, ECM Motor, 65 to 115 deg F, Steel, Finish: Galvanized/Powder-Coated, Gray, 41-5/8 in H x 35-1/2 in W x 35-1/2 in D, Additional Information: TXV Expansion Device
Attributes
Dimensions: 41-5/8 in H x 35-1/2 in W x 35-1/2 in D
Material: Steel
Motor Type: ECM
Nominal Capacity: 5 ton
Refrigerant Type: R-410A
SEER Rating: 14.6 to 15.5
Sound Level: 76 dBA
Suction Line Size: 7/8 in
Additional Information: TXV Expansion Device
Amperage Rating: 32.4 A
BTU Rating: 60000 Btu/hr
Color: Gray
Compressor Type: Scroll
Connection Type: C
Finish: Galvanized/Powder-Coated
Frequency Rating: 60 Hz
Fuse Rating: 50 A
HP Rating: 1/3 hp
Liquid Line Size: 3/8 in
Model: GSXH5
Number of Stages: 2
Phase: 1 ph
Temperature Rating: 65 to 115 deg F
Voltage Rating: 208/230 V
Features
- High efficiency scroll compressor
- Factory installed filter drier
- Fully charged for 15 ft of tubing length
- Copper tube/enhanced aluminum fin coil - 5 mm dia on 1.5 - 3.0T
- Service valves with sweat connections and easy to access gauge ports
