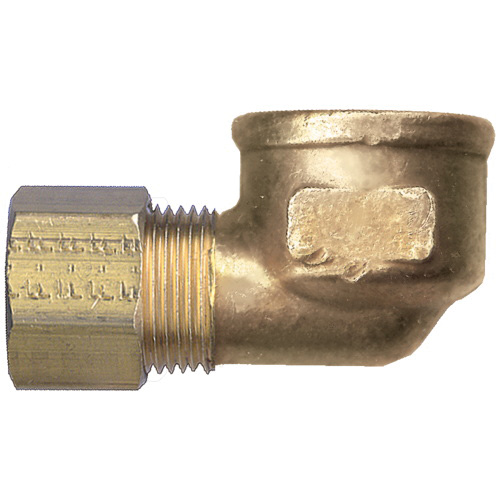

FAIRVIEW 70-4C COMP 90 ELBOW 1/4T X 3/8FPT
MFR Part #: 70-4C
SKU #: 1059368
Brand: Fairview
UPC: 400005298943
Fairview 70-4C 90 deg Pipe Elbow, 1/4 in Tube x 3/8 in FIP, Brass
1 Year
For low pressure water, air, oil and other copper tube applications
Product Details
Attributes
Features
Resources
Fairview 90 deg Pipe Elbow, 70 Series, 90 deg Elbow Fitting, 1/4 in Connection Size 1, Connection Type 1: Tube, 3/8 in Connection Size 2, Connection Type 2: FIP, Tube|FIP Connection, Brass, Material Construction: Brass, 1/4 in Tube OD, For Use With: Aluminum, Brass, Copper and Plastic Tubings, 300 psi, -65 to 250 deg F
Fitting/Connector Type:90 deg Elbow
Nominal Size:1/4 x 3/8 in
Pressure Rating:300 psi
Connection Size 1:1/4 in
Connection Size 2:3/8 in
Connection Type:Tube|FIP
Connection Type 1:Tube
Connection Type 2:FIP
Fitting Type:90 deg Elbow
For Use With:Aluminum, Brass, Copper and Plastic Tubings
Material:Brass
Material Construction:Brass
Series:70 Series
Temperature Rating:-65 to 250 deg F
Tube OD:1/4 in
- The compression connection is a three-piece assembly that consists of a cap-shaped nut with female threads, a compression sleeve that looks like a simple wedding ring and a seat section with male threads
- The cap nut and the seat are screwed together causing the compression sleeve to squeeze tightly against them, as well as the adjoining tube
- This causes a compressed or compression type watertight connection
Product Details
Fairview 90 deg Pipe Elbow, 70 Series, 90 deg Elbow Fitting, 1/4 in Connection Size 1, Connection Type 1: Tube, 3/8 in Connection Size 2, Connection Type 2: FIP, Tube|FIP Connection, Brass, Material Construction: Brass, 1/4 in Tube OD, For Use With: Aluminum, Brass, Copper and Plastic Tubings, 300 psi, -65 to 250 deg F
Attributes
Fitting/Connector Type: 90 deg Elbow
Nominal Size: 1/4 x 3/8 in
Pressure Rating: 300 psi
Connection Size 1: 1/4 in
Connection Size 2: 3/8 in
Connection Type: Tube|FIP
Connection Type 1: Tube
Connection Type 2: FIP
Fitting Type: 90 deg Elbow
For Use With: Aluminum, Brass, Copper and Plastic Tubings
Material: Brass
Material Construction: Brass
Series: 70 Series
Temperature Rating: -65 to 250 deg F
Tube OD: 1/4 in
Features
- The compression connection is a three-piece assembly that consists of a cap-shaped nut with female threads, a compression sleeve that looks like a simple wedding ring and a seat section with male threads
- The cap nut and the seat are screwed together causing the compression sleeve to squeeze tightly against them, as well as the adjoining tube
- This causes a compressed or compression type watertight connection
