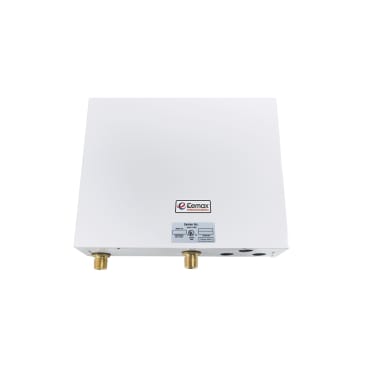

EEMAX EX280T3 S 28 KW 240V CANADA
MFR Part #: EX280T3 S
SKU #: 1224826
Brand: Eemax™
UPC: 091654904905
Eemax™ EX280T3 S Three™ Thermostatic Electric Tankless Water Heater, 240 V AC, 28500 W, 1 ph, 3/4 in MNPT Water, 119 A, Commercial/Residential/Dual: Commercial
1 Year Limited For Parts/5 Years Limited on Leaks
EX630 Element, EX284AB-240 Board, EX255B Relay/Contactor, EX278D Eco and EX18 Triac
Industrial, Booster, Commercial Kitchens, Process Heating, High Volume Domestic Hot Water and Emergency Equipment
AHRI Certified | ANSI/NSF 372 by WQA | Patent #4762980/4960976 | UL 499
Product Details
Attributes
Features
Resources
Eemax™ Electric Tankless Water Heater, Thermostatic, Series: Three™ Series, 240 V AC, 119 A, 28500 W, 1 ph, 4 gpm, 3/4 in MNPT Water Connection, Nickel Chrome Heating Element, Energy Factor: 0.99, (3 Sets) 8 AWG Wire, Wall Mount, 2.5 gpm at 78 deg F Rise Recovery, 25 to 150 psi, 180 deg F, ASME Yes/No: No, White, 15.19 in W x 4.32 in D x 12.14 in H, Commercial Commercial/Residential/Dual, Import
Amperage Rating:119 A
Country Of Origin:US
Phase:1
Power Rating:28500 W
Voltage Rating:240 V AC
ASME Yes/No:No
Color:White
Commercial/Residential/Dual:Commercial
Dimensions:15.19 in W x 4.32 in D x 12.14 in H
Domestic/Import:Import
Energy Factor:.99
Flow Rate:4 gpm
Heating Element:Nickel Chrome
Mounting Type:Wall
Pressure Rating:25 to 150 psi
Recovery Rate:2.5 gpm at 78 deg F Rise
Series:Three™
Temperature Rating:180 deg F
Type:Thermostatic
Water Connection:3/4 in MNPT
Water Heater Type:Electric
Wire Size:(3 Sets) 8 AWG
- On demand hot water - No delay
- Cut energy waste - flow switch activates heater only when water is running, no standby heat loss
- Endless hot water - no storage capacity to deplete
- Reduces installation cost and material - No temperature and pressure valve required
- Thermo optical sensor and predictive control algorithm ensures optimal heat management
- Easy installation - simple NPT fittings that require no soldering, unit mounts directly to the wall with common hardware
- Prevents legionella bacteria growth
- Reduces calcification and sedimentation
- The wetted surface of this product contacted by water contains less than 0.25% lead and meets ANSI/NSF 372
- Custom designs up to 80 gpm
- 0.7 gpm turn-on
- Replaceable cartridge bare wire element
- Bottom plumbing configuration
- Pre-heated or cold water Inlet
- Adjustable thermostat
- 180 deg F sanitation
