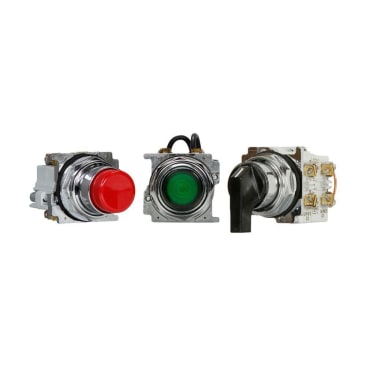

EATON 10250T476C21-1-POP Image 1

EATON 10250T476C21-1-POP 24V ILLUMINATED FULL VOLTAGE PUSHBUTTON

MFR Part #: 10250T476C21-1-POP
SKU #: 1311516
Brand: EATON
UPC: 782114408551
EATON 10250T476C21-1-POP Heavy Duty Oil/Watertight Standard Square Illuminated Pushbutton, 30.5 mm, 1NO-1NC Contact, Red
1 year
Electrical Assemblies, Panels and EOEMs Applications
CSA Certified,UL Listed,CE Marked

EATON Illuminated Pushbutton, Heavy Duty Oil/Watertight Standard Square, Series: 10250T, 30.5 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC Contact, Incandescent Lamp, Bezel/Housing: Polished Chrome Bezel, Extended Button Actuator, Screw Terminal, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Die-Cast Zinc, Polished Chrome, Red, Environmental Conditions: 10 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Product Details

EATON Illuminated Pushbutton, Heavy Duty Oil/Watertight Standard Square, Series: 10250T, 30.5 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC Contact, Incandescent Lamp, Bezel/Housing: Polished Chrome Bezel, Extended Button Actuator, Screw Terminal, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Die-Cast Zinc, Polished Chrome, Red, Environmental Conditions: 10 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Attributes

Actuator: Extended Button
Bezel/Housing: Polished Chrome Bezel
Color: Red
Contact Configuration: 1NO-1NC
Contact Mode: Momentary
Contact Rating: 10 A at 600 V AC
Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
Environmental Conditions: 10 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C
Lamp Type: Incandescent
Material: Die-Cast Zinc
Size: 30.5 mm
Terminal Type: Screw
Type: Heavy Duty Oil/Watertight Standard Square
Finish: Polished Chrome
Series: 10250T

Features

  • Heavy duty die-cast zinc construction
  • Enclosed silver contacts with reliability nibs
  • Diaphragm seals with drainage holes
  • Grounding nibs on the operator casing
  • 24 V full voltage incandescent light unit

Resources

Specification Sheet
