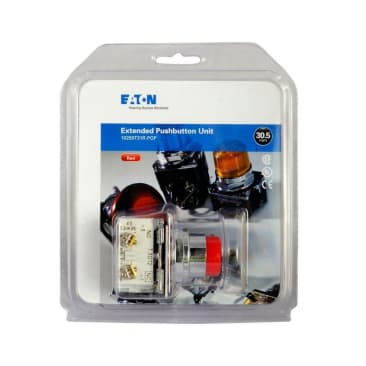

EATON 10250T31R-POP Image 1

EATON 10250T31R-POP HEAVY-DUTY PUSHBUTTON 1-NORMALLY OPEN/1-NORMALLY CLOSED

MFR Part #: 10250T31R-POP
SKU #: 1311525
Brand: EATON
UPC: 782114408476
EATON 10250T31R-POP Heavy Duty Oil/Watertight Standard Square Non-Illuminated Pushbutton, 30.5 mm, 1NO-1NC Contact, Red
1 year
Automation and Logic Control Equipment Applications
UL Listed,CSA Certified,CE Marked

EATON Non-Illuminated Pushbutton, Heavy Duty Oil/Watertight Standard Square, Series: 10250T, 30.5 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC Contact, Legend: STOP, Bezel/Housing: Polished Chrome Bezel, Extended Button Actuator, Screw Terminal, NEMA 3/3R/4/4X/12/13 Enclosure, Die-Cast Zinc, Polished Chrome, Red

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Product Details

EATON Non-Illuminated Pushbutton, Heavy Duty Oil/Watertight Standard Square, Series: 10250T, 30.5 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC Contact, Legend: STOP, Bezel/Housing: Polished Chrome Bezel, Extended Button Actuator, Screw Terminal, NEMA 3/3R/4/4X/12/13 Enclosure, Die-Cast Zinc, Polished Chrome, Red

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Attributes

Enclosure Type: NEMA 3/3R/4/4X/12/13
Actuator: Extended Button
Bezel/Housing: Polished Chrome Bezel
Color: Red
Contact Configuration: 1NO-1NC
Contact Mode: Momentary
Contact Rating: 10 A at 600 V AC
Finish: Polished Chrome
Legend: Stop
Material: Die-Cast Zinc
Series: 10250T
Size: 30.5 mm
Terminal Type: Screw
Type: Heavy Duty Oil/Watertight Standard Square

Features

  • Heavy duty die-cast zinc construction
  • Enclosed silver contacts with reliability nibs
  • Diaphragm seals with drainage holes
  • Grounding nibs on the operator casing
  • Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
  • Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
  • Grounding nibs bit through paint and other coatings to provide secure ground
