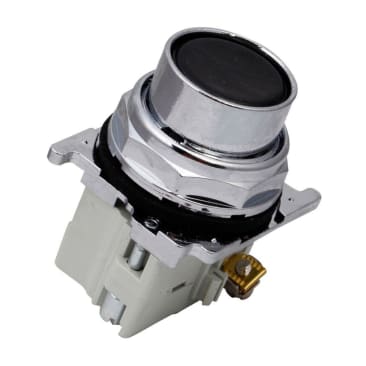

EATON 10250T23B HEAVY-DUTY PUSHBUTTON 1-NORMALLY OPEN

MFR Part #: 10250T23B
SKU #: 1311523
Brand: EATON
UPC: 782113358321
EATON 10250T23B Heavy Duty Oil/Watertight Standard Non-Illuminated Pushbutton, 30.5 mm, 1NO Contact, Black
1 year
Stationary Machinery, Equipment Outside Factory and Other Applications
UL Listed,CSA Certified,CE Marked

EATON Non-Illuminated Pushbutton, Heavy Duty Oil/Watertight Standard, Series: 10250T, 30.5 mm Size, 1NO Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC Contact, Bezel/Housing: Polished Chrome Bezel, Flush Button Actuator, Screw Terminal, NEMA 3/3R/4/4X/12/13 Enclosure, Flush Mounting, Die-Cast Zinc, Polished Chrome, Black

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Product Details

EATON Non-Illuminated Pushbutton, Heavy Duty Oil/Watertight Standard, Series: 10250T, 30.5 mm Size, 1NO Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC Contact, Bezel/Housing: Polished Chrome Bezel, Flush Button Actuator, Screw Terminal, NEMA 3/3R/4/4X/12/13 Enclosure, Flush Mounting, Die-Cast Zinc, Polished Chrome, Black

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Attributes

Enclosure Type: NEMA 3/3R/4/4X/12/13
Actuator: Flush Button
Bezel/Housing: Polished Chrome Bezel
Color: Black
Contact Configuration: 1NO
Contact Mode: Momentary
Contact Rating: 10 A at 600 V AC
Finish: Polished Chrome
Material: Die-Cast Zinc
Mounting Type: Flush
Series: 10250T
Size: 30.5 mm
Terminal Type: Screw
Type: Heavy Duty Oil/Watertight Standard

Features

  • Heavy duty die-cast zinc construction
  • Enclosed silver contacts with reliability nibs
  • Diaphragm seals with drainage holes
  • Grounding nibs on the operator casing
  • Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
  • Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
  • Grounding nibs bit through paint and other coatings to provide secure ground
