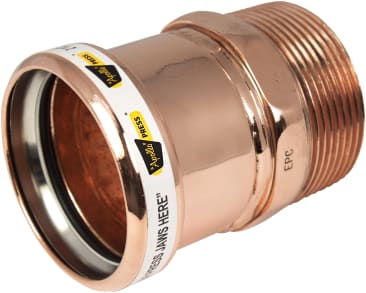

CONBRACO 10061982 Image 1
CONBRACO 10061982 Image 2
content loaded
CONBRACO 10061982 Image 1

CONBRACO 10061982 804 2-1/2 CXMIP COP ADPT

MFR Part #: 10061982
SKU #: 1105487
Brand: Apollo™ Conbraco
UPC: 683264619821
Apollo™ APOLLOXPRESS® 10061982 804 Large Diameter Press Adapter, 2-1/2 in, Solder x MNPT, Copper, Domestic
Industrial and Residential
ARRA Compliant | cUPC Listed | IAPMO File Listings: 4861 | 6174 and N-4951 | ANSI/NSF NSF 61-Water Quality | ANSI/NSF NSF 372-Lead Free (LF)

Apollo™ APOLLOXPRESS® Adapter, Large Diameter Press, Series: 804, Fitting/Connector Type: Adapter, 2-1/2 in Nominal, Solder x MNPT, 200 psi, 0 to 250 deg F, Copper, 3.16 in L x 4.11 in W x 3.16 in H, Domestic

The APOLLOXPRESS® 804 Large Diameter Press Adapter features a Lead-Free dezincification resistant copper body, a patented stainless-steel solid cross-section Grab Ring, a Nylon Separation Ring and an EPDM O-Ring. Our Large Diameter APOLLOXPRESS® products are manufactured utilizing proven ASTM materials and standards. Proudly Made In The USA.

Product Details

Apollo™ APOLLOXPRESS® Adapter, Large Diameter Press, Series: 804, Fitting/Connector Type: Adapter, 2-1/2 in Nominal, Solder x MNPT, 200 psi, 0 to 250 deg F, Copper, 3.16 in L x 4.11 in W x 3.16 in H, Domestic

The APOLLOXPRESS® 804 Large Diameter Press Adapter features a Lead-Free dezincification resistant copper body, a patented stainless-steel solid cross-section Grab Ring, a Nylon Separation Ring and an EPDM O-Ring. Our Large Diameter APOLLOXPRESS® products are manufactured utilizing proven ASTM materials and standards. Proudly Made In The USA.

Attributes

Connection Type: Solder x MNPT
Country Of Origin: US
Fitting/Connector Type: Adapter
Dimensions: 3.16 in L x 4.11 in W x 3.16 in H
Domestic/Import: Domestic
Material: Copper
Pressure Class: 200 psi
Series: 804
Temperature Rating: 0 to 250 deg F
Type: Large Diameter Press

Features

  • Lead free construction
  • Leak-before-press technology
  • Visual element, break away band
  • Compatible with XL-C™ pressing tools
  • Approved for underground installation
  • Use with hard/soft ASTM B88 K, L & M copper tube
  • UNS C12200 copper
  • ANSI/NSF-61 Listed silicone lubrication
