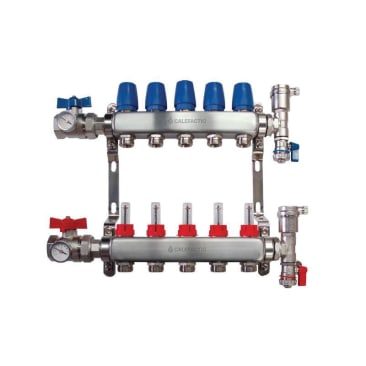

CALEFACTIO MAN11-M150SS-BV150 CALTHERM MEGA 1-1/2IN 11-LOOP STAINLESS STEEL MANIFOLD

MFR Part #: MAN11-M150SS-BV150
SKU #: 1309784
Brand: Calefactio
UPC: 400052492103
Calefactio Caltherm Mega Series MAN11-M150SS-BV150 Manifold, 1-1/2 in, 304 Stainless Steel, 23.1 gpm, 2-Inlet

Calefactio Manifold, Caltherm Mega Series, 23.1 gpm Flow Rate, 125 psi, 110 deg C, 2 Inlets, 11 Outlets, Number of Ports/Ways: 11, 3/4 in Gauge Diameter, 0 to 80 deg C Measuring, Wall Mounting, 1-1/2 in Port, Manifold Number: M-11, 1-1/2 in, 304 Stainless Steel, 29-1/8 in W, Domestic/Import: Import, Additional Information: 11-Loop

Headers are offered in 9 models (2 to 12 loops) with a maximum flow rate of 24 gallons per minute (GPM). The integrated flowmeters allow the user to adjust the flow easily in each loop. Circuit isolation valves are also compatible with 24V actuators from Calefactio (#AC24VNC).

Product Details

Calefactio Manifold, Caltherm Mega Series, 23.1 gpm Flow Rate, 125 psi, 110 deg C, 2 Inlets, 11 Outlets, Number of Ports/Ways: 11, 3/4 in Gauge Diameter, 0 to 80 deg C Measuring, Wall Mounting, 1-1/2 in Port, Manifold Number: M-11, 1-1/2 in, 304 Stainless Steel, 29-1/8 in W, Domestic/Import: Import, Additional Information: 11-Loop

Headers are offered in 9 models (2 to 12 loops) with a maximum flow rate of 24 gallons per minute (GPM). The integrated flowmeters allow the user to adjust the flow easily in each loop. Circuit isolation valves are also compatible with 24V actuators from Calefactio (#AC24VNC).

Attributes

Dimensions: 29-1/8 in W
Domestic/Import: Import
Material: 304 Stainless Steel
Number of Outlets: 11
Pressure Rating: 125 psi
Series: Caltherm Mega Series
Temperature Rating: 110 deg C
Additional Information: 11-Loop
Flow Rate: 23.1 gpm
Gauge Diameter: 3/4 in
Measuring Range: 0 to 80 deg C
Mounting Type: Wall
Number of Inlets: 2
Number of Ports/Ways: 11
Port Size: 1-1/2 in
Size: 1-1/2 in

Features

  • Headers with 1-1/4" or 1-1/2" connections
  • Made of 304 stainless steel
  • Preassembled on wall support for easy installation
  • Integrated flowmeters (7.9 LPM / 2 GPM per loop)
  • Maximum pressure: 125 psi / 862 kPa
  • Maximum temperature: 230 deg F / 110 deg C
  • Provided with air purger and drain
  • Compatible with Calefactio 24 volt actuator (#AC24NC)
  • Compatible with ethylene and propylene glycol up to a maximum of 50% concentration
  • Possibility to isolate each loop with isolating valve and balancing valve
  • 2-way NPT ball valve with integrated thermometer
