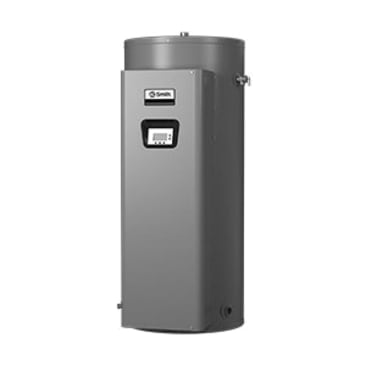

AO SMITH DVE-120452083 DVE-120 100USG 45KW 208V WATER HEATER
MFR Part #: DVE-120-45-208
SKU #: 0434140
Brand: A.O. Smith®
UPC: 000000000000
AO Smith® DVE Series DVE-120 DVE-120-45-208 Electric Water Heater, 119 gal, 153540 Btu/hr, 45 kW, 1 ph, 208 V
1 Year Parts, 3 Year Tank
For commercial and industrial applications
AHRI Certified | ASME Specified | CSA Certified | UL Listed
Product Details
Attributes
Features
Resources
AO Smith® Electric Water Heater, DVE Series, Model: DVE-120, 119 gal Capacity, 153540 Btu/hr, 45 kW, 186 gph Recovery Rate, 9 Elements, 5000 W Element Wattage, 187.5 A, 208 V, 60 Hz, 1 ph Phase, NPT Connection, 1-1/4 in Connection, 150 psi, Finish: Baked Enamel, 32 to 88 deg C, 62-1/4 in H x 29-1/2 in W, Incoloy® Element
Amperage Rating:187.5 A
Heating Capacity:153540 Btu/hr
Power Rating:45 kW
Tank Capacity:119 gal
Voltage Rating:208 V
Connection Size:1-1/4 in
Connection Type:NPT
Dimensions:62-1/4 in H x 29-1/2 in W
Element Material:Incoloy®
Element Wattage:5000 W
Finish:Baked Enamel
Frequency Rating:60 Hz
Model:DVE-120
Number of Elements:9
Phase:1 ph
Pressure Rating:150 psi
Recovery Rate:186 gph
Series:DVE Series
Temperature Rating:32 to 88 deg C
Water Heater Type:Electric
- Meets the standby loss requirements of the US department of energy and current edition of AHRAE/IES 90.1
- Heavy-duty medium watt density elements (three/immersion heater) have incoloy sheathing provide excellent protection against oxidation and scaling
- Glass lined tank, tank interior is coated with glass specially designed by A. O. Smith for water heater use, tanks rated at 150 psi working pressure
- Fuses protect all elements, thermostats and internal wiring circuits against excess current flow
- Terminal block is factory installed, just bring the service to heater and connect to block
- Temperature control, electronic controls allow accurate temperature setting from 32 to 88 deg C and have connection for BMS monitoring and remote on/off contact
- Surface-mounted thermostats
- Simplified circuitry, color-coded for ease of service
- Two anode rods for maximum corrosion protection
- Cabinet has bonderized undercoat with baked enamel finish
- Bottom inlet and top outlet openings
- Brass drain valve
- CSA certified and ASME-rated T&P relief valve
- Single panel control box
- Foam insulation reduces costly heat loss
Product Details
AO Smith® Electric Water Heater, DVE Series, Model: DVE-120, 119 gal Capacity, 153540 Btu/hr, 45 kW, 186 gph Recovery Rate, 9 Elements, 5000 W Element Wattage, 187.5 A, 208 V, 60 Hz, 1 ph Phase, NPT Connection, 1-1/4 in Connection, 150 psi, Finish: Baked Enamel, 32 to 88 deg C, 62-1/4 in H x 29-1/2 in W, Incoloy® Element
Attributes
Amperage Rating: 187.5 A
Heating Capacity: 153540 Btu/hr
Power Rating: 45 kW
Tank Capacity: 119 gal
Voltage Rating: 208 V
Connection Size: 1-1/4 in
Connection Type: NPT
Dimensions: 62-1/4 in H x 29-1/2 in W
Element Material: Incoloy®
Element Wattage: 5000 W
Finish: Baked Enamel
Frequency Rating: 60 Hz
Model: DVE-120
Number of Elements: 9
Phase: 1 ph
Pressure Rating: 150 psi
Recovery Rate: 186 gph
Series: DVE Series
Temperature Rating: 32 to 88 deg C
Water Heater Type: Electric
Features
- Meets the standby loss requirements of the US department of energy and current edition of AHRAE/IES 90.1
- Heavy-duty medium watt density elements (three/immersion heater) have incoloy sheathing provide excellent protection against oxidation and scaling
- Glass lined tank, tank interior is coated with glass specially designed by A. O. Smith for water heater use, tanks rated at 150 psi working pressure
- Fuses protect all elements, thermostats and internal wiring circuits against excess current flow
- Terminal block is factory installed, just bring the service to heater and connect to block
- Temperature control, electronic controls allow accurate temperature setting from 32 to 88 deg C and have connection for BMS monitoring and remote on/off contact
- Surface-mounted thermostats
- Simplified circuitry, color-coded for ease of service
- Two anode rods for maximum corrosion protection
- Cabinet has bonderized undercoat with baked enamel finish
- Bottom inlet and top outlet openings
- Brass drain valve
- CSA certified and ASME-rated T&P relief valve
- Single panel control box
- Foam insulation reduces costly heat loss
