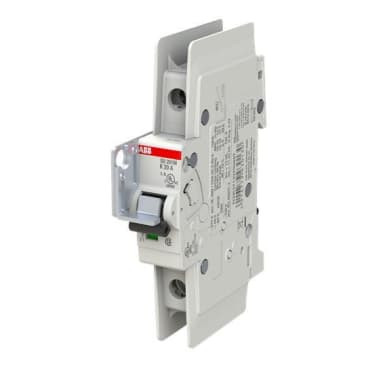

ABB SU201M-K20 MINCRCT BRKR 20A 1PL K HGH INRSH MTR XFMR LDS
MFR Part #: SU201M-K20
SKU #: 1202689
Brand: ABB
UPC: 888614423169
ABB System pro M compact® SU201M-K20 SU200M High Performance Miniature Circuit Breaker, 277/480Y VAC, 48/96 VDC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
For branch circuit protection
CSA 22.2 File No 5 | IEC 60947-2 | UL 489
Product Details
Attributes
Features
Resources
ABB Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480Y VAC, 48/96 VDC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Screw Connection, 18 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 111 mm H Dimensions, Light Gray
Amperage Rating:20 A
Number of Poles:1
Color:Light Gray
Connection Type:Screw
Dimensions:69 mm L x 17.5 mm W x 111 mm H
Enclosure Type:IP20
Frequency Rating:50/60 Hz
Interrupt Rating:10 kA
Mounting Type:DIN Rail
Series:SU200M
Temperature Rating:-25 to 55 deg C
Trip Type:Thermal Magnetic
Type:High Performance
Voltage Rating:277 to 480Y V AC/48 to 96 V DC
Wire Size:18 to 4 AWG
- Type C characteristic is for general device protection in control circuits
- 5 to 10 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
- Identical wire screw connections on line and load side
Product Details
ABB Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480Y VAC, 48/96 VDC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Screw Connection, 18 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 111 mm H Dimensions, Light Gray
Attributes
Amperage Rating: 20 A
Number of Poles: 1
Color: Light Gray
Connection Type: Screw
Dimensions: 69 mm L x 17.5 mm W x 111 mm H
Enclosure Type: IP20
Frequency Rating: 50/60 Hz
Interrupt Rating: 10 kA
Mounting Type: DIN Rail
Series: SU200M
Temperature Rating: -25 to 55 deg C
Trip Type: Thermal Magnetic
Type: High Performance
Voltage Rating: 277 to 480Y V AC/48 to 96 V DC
Wire Size: 18 to 4 AWG
Features
- Type C characteristic is for general device protection in control circuits
- 5 to 10 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
- Identical wire screw connections on line and load side
