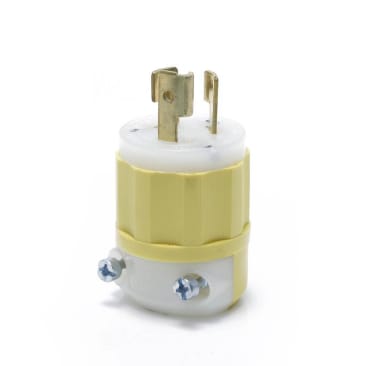

LEVITON 4770-CY 15A 277V 2-POLE 3-WIRE INDUSTRIAL LOCKING PLUG YELLOW
MFR Part #: 4770-CY
SKU #: 1292900
Brand: Leviton®
UPC: 078477795774
Leviton® 4770-CY 1-Phase Grounding Cable Mount Locking Plug, 277 VAC, 15 A, 2 Poles, 3 Wires, White/Yellow
Lifetime
Industrial Applications
ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
Product Details
Attributes
Resources
Leviton®, 4770-CY, Locking Plug, 1-Phase Grounding Cable Mount, 277 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, NEMA L7-15P NEMA Rating, Industrial Grade, 0.24 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, White/Yellow, 1.53 in Dia x 1.98 in L Dimensions
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Amperage Rating:15 A
Color:White/Yellow
Cord Diameter:0.24 to 0.7 in
Dimensions:1.53 in Dia x 1.98 in L
Grade:Industrial
Horsepower:2 hp
Material:Nylon
NEMA Rating:NEMA L7-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Type:1-Phase Grounding Cable Mount
Voltage Rating:277 VAC
Product Details
Leviton®, 4770-CY, Locking Plug, 1-Phase Grounding Cable Mount, 277 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, NEMA L7-15P NEMA Rating, Industrial Grade, 0.24 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, White/Yellow, 1.53 in Dia x 1.98 in L Dimensions
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Attributes
Amperage Rating: 15 A
Color: White/Yellow
Cord Diameter: 0.24 to 0.7 in
Dimensions: 1.53 in Dia x 1.98 in L
Grade: Industrial
Horsepower: 2 hp
Material: Nylon
NEMA Rating: NEMA L7-15P
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Screw
Type: 1-Phase Grounding Cable Mount
Voltage Rating: 277 VAC
