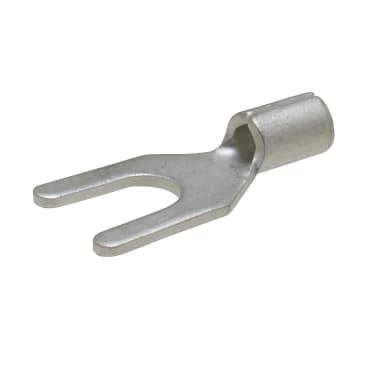

ILSCO BSBR-18-8-P50 Image 1

ILSCO BSBR-18-8-P50 BARE SPADE BRONZED 18-22 8 STUD

MFR Part #: BSBR-18-8-P50
SKU #: 1123673
Brand: ILSCO®
UPC: 783669201697
ILSCO® BSBR-18-8-P50 Type BSBR Non-Insulated Standard Spade Terminal, 22 to 18 AWG Conductor, 0.63 in L, Brazed Barrel, Copper Alloy
UL 486A/B File No. E6207

ILSCO® Spade Terminal, Type BSBR Non-Insulated Standard, Copper Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.63 in Length, Brazed Barrel, Spade Tongue, 0.319 in W Tongue, Specifications: Die Set A, Copper Alloy, Electro-Tin Plated, 2.88 in H x 1.21 in W x 3.5 in D Dimensions

Product Details

ILSCO® Spade Terminal, Type BSBR Non-Insulated Standard, Copper Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.63 in Length, Brazed Barrel, Spade Tongue, 0.319 in W Tongue, Specifications: Die Set A, Copper Alloy, Electro-Tin Plated, 2.88 in H x 1.21 in W x 3.5 in D Dimensions

Attributes

Barrel Type: Brazed
Conductor Size: 22 to 18 AWG
Conductor Type: Copper
Country Of Origin: Taiwan
Dimensions: 2.88 in H x 1.21 in W x 3.5 in D
Finish: Electro-Tin Plated
Length: .63 in
Material: Copper Alloy
Specifications: Die Set A
Stud Size: #8
Tongue Size: 0.319 in W
Tongue Type: Spade
Type: Type BSBR Non-Insulated Standard

Features

  • Funnel wire entry
  • Same benefit as fork configuration, but with the added benefit of sides that are able to lie flat against barrier portion of terminal blocks
  • Offers maximum conductivity
  • Provides low contact resistance
  • Smooth wire insertion into barrel
  • Stronger crimp connection that will not split open, prevents wire pull out
  • Ensures reliability for copper conductor

Resources

Specification Sheet
