M12 102 X 77 INFRARED CAMERA MILWAUKEE 2258-21
Product Details
Attributes
Features
Resources

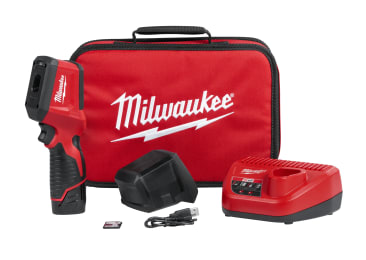

Milwaukee® Thermal Imager Kit, 2.4 in LCD Display, 14 to 626 deg F, 320 x 240 pixel Display, 7854 pixel Sensor Resolution, Gray/Iron/Rainbow
The M12™ 102 X 77 Infrared Camera is the first imager in its class to deliver outstanding 7800 pixel image detail for superior scanning than single-point infrared thermometers. Leverage Milwaukee® exclusive DUAL SENSE™ pixel technology to get crisp images of heat loss, electrical resistance, water damage and mechanical issues. On-screen temperature readout and 83:1 Distance-to-Spot ratio gives users precise, real-time measurements from a distance. Capture, store and share images using the included SD card and USB cable. Fully compatible with Milwaukee® Thermal Imager Reporting Software for archiving, analyzing and reporting.
- 7854 (102 x 77) pixel resolution provides exceptional detail
- DUAL SENSE™ pixels are ultra responsive, adjusting individually to eliminate blurring of hot and cold areas
- Take measurements from long range or down to the detail with 83:1 distance-to-spot performance
- Measure surface temperatures 14 to 626 deg F for images spanning wide ranges
- 2-stage trigger activates lasers for easy scanning or quickly captures images
- Dual lasers frame on-screen temperature area
- Automatically locates highest and lowest temperatures
- Compatible with over 70+ M12™ tools
- -10 to 330 deg C temperature range
- 26.8 (Horizontal) x 35.4 (vertical) field of view, dual lasers, fixed focus method, automatic ranging, SD card upto 32 GB data storage, 6 ft drop test
- 10+ hr runtime 83:1 distance to spot ratio, 0.1 deg C at 30 deg C thermal sensitivity
Product Details
Milwaukee® Thermal Imager Kit, 2.4 in LCD Display, 14 to 626 deg F, 320 x 240 pixel Display, 7854 pixel Sensor Resolution, Gray/Iron/Rainbow
The M12™ 102 X 77 Infrared Camera is the first imager in its class to deliver outstanding 7800 pixel image detail for superior scanning than single-point infrared thermometers. Leverage Milwaukee® exclusive DUAL SENSE™ pixel technology to get crisp images of heat loss, electrical resistance, water damage and mechanical issues. On-screen temperature readout and 83:1 Distance-to-Spot ratio gives users precise, real-time measurements from a distance. Capture, store and share images using the included SD card and USB cable. Fully compatible with Milwaukee® Thermal Imager Reporting Software for archiving, analyzing and reporting.
Attributes
Features
- 7854 (102 x 77) pixel resolution provides exceptional detail
- DUAL SENSE™ pixels are ultra responsive, adjusting individually to eliminate blurring of hot and cold areas
- Take measurements from long range or down to the detail with 83:1 distance-to-spot performance
- Measure surface temperatures 14 to 626 deg F for images spanning wide ranges
- 2-stage trigger activates lasers for easy scanning or quickly captures images
- Dual lasers frame on-screen temperature area
- Automatically locates highest and lowest temperatures
- Compatible with over 70+ M12™ tools
- -10 to 330 deg C temperature range
- 26.8 (Horizontal) x 35.4 (vertical) field of view, dual lasers, fixed focus method, automatic ranging, SD card upto 32 GB data storage, 6 ft drop test
- 10+ hr runtime 83:1 distance to spot ratio, 0.1 deg C at 30 deg C thermal sensitivity
