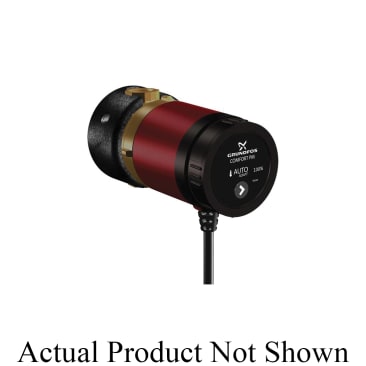

UP10-16APMBN5/LC HOT WATER CIRC 1/2NPT GRUNDFOS 98420223

MFR Part #: 98420223
SKU #: 1118764
Brand: Grundfos
UPC: 400007573390
Grundfos 98420223 UP Comfort Canned Rotor Circulator Pump, 1/2 in C Inlet x 1/2 in C Oulet, 115 to 230 V AC, 1 ph
84Z03818 Motor
Boiler/Hydronic Heating, Ground-Source Heat Pumps, Radiant Floor Heating, Hydronic and Fan-Coil Heating, Solar Heating, Heat Recovery/Heat Pumps, Solar Water Heating, Hot-Water Recirculation, Domestic Hot-Water Heating and Chilled-Water Pumping
CSA Certified | UL Listed

Grundfos Circulator Pump, Canned Rotor, Series: UP Comfort, 1/2 in C Inlet, 1/2 in C Outlet, 5.25 ft Maximum Head, 6 W, 115 to 230 V AC, 0.1 to 0.07 A, 60 Hz, 1 ph, 145 psi Maximum, Stainless Steel/EPDM/PPO/PTFE/Graphite Impeller, 140 deg F, IP44, Ceramic Radial/Carbon Thrust Bearing, 3-1/3 in Dia

The Grundfos circulator pumps, Series UP are specifically designed for heating systems. The pumps are also suitable for circulation of hot domestic water and for circulation of liquid in cooling and air conditioning systems.

Product Details

Grundfos Circulator Pump, Canned Rotor, Series: UP Comfort, 1/2 in C Inlet, 1/2 in C Outlet, 5.25 ft Maximum Head, 6 W, 115 to 230 V AC, 0.1 to 0.07 A, 60 Hz, 1 ph, 145 psi Maximum, Stainless Steel/EPDM/PPO/PTFE/Graphite Impeller, 140 deg F, IP44, Ceramic Radial/Carbon Thrust Bearing, 3-1/3 in Dia

The Grundfos circulator pumps, Series UP are specifically designed for heating systems. The pumps are also suitable for circulation of hot domestic water and for circulation of liquid in cooling and air conditioning systems.

Attributes

Amperage Rating: 0.1 to 0.07 A
Bearing Type: Ceramic Radial/Carbon Thrust
Clearance Items: Clearance
Dimensions: 3-1/3 in Dia
Enclosure Type: IP44
Frequency Rating: 60 Hz
Impeller Type: Stainless Steel/EPDM/PPO/PTFE/Graphite
Inlet Size: 1/2 in C
Maximum Head: 5.25 ft
Maximum Pressure: 145 psi
Outlet Size: 1/2 in C
Phase: 1
Power Rating: 6 W
Series: UP Comfort
Temperature Rating: 140 deg F
Type: Canned Rotor
Voltage Rating: 115 to 230 V AC

Features

  • Quick and simple electrical installation due to the highly reliable ALPHA plug
  • Dry-running detection
  • Easy-to-clean and lime-insensitive aspheric rotor
  • Wearless operation due to liquid lubricated bearing
  • No leakage risk due to a static seal
  • Easy maintenance and cleaning through the easy-to-separate pump head fitting almost all competitor pump housings
  • Corrosion-resistant lead free brass pump housing
  • No additional motor protection necessary due to integrated motor electronics
  • Non-electronically controlled circulator pumps for domestic building with speed control
  • Line cord
  • NPT female thread fitting
