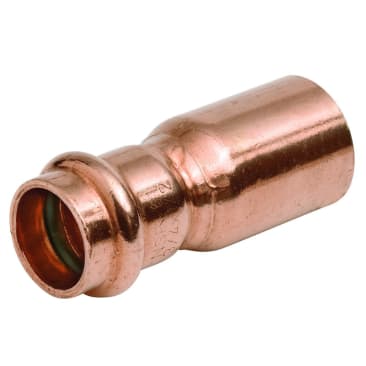

NIBCO 9008500PC Image 1

NIBCO 9008500PC PC600-2 1-1/4X1 FTGXPRS BUSHING

MFR Part #: 9008500PC
SKU #: 1056476
Brand: NIBCO®
UPC: 039923292100
NIBCO® Press System® Lead Free 9008500PC PC600-2 Reducer, 1-1/4 x 1 in Nominal, Fitting x Press End Style, Wrought Copper, Domestic
50 Years Limited
For residential and commercial potable, hot, chilled and process water applications for plumbing and HVAC systems
ASME B16/51 | ASTM B75 Alloy C12200 Copper | CSA MSE 13/PS-117 | MEA 9-97-E Vol.3 | UPC Listed

NIBCO® Press System® Reducer, Series: PC600-2, Reducing Coupling, 1-1/4 x 1 in Nominal, Fitting x Press, 200 psi CWP, -20 to 250 deg F, Wrought Copper, Domestic

The NIBCO® Press System® copper fitting reducer features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The fitting reducer has a press connection and a fitting end. The fitting provides a method to connect two lengths of tube.

Product Details

NIBCO® Press System® Reducer, Series: PC600-2, Reducing Coupling, 1-1/4 x 1 in Nominal, Fitting x Press, 200 psi CWP, -20 to 250 deg F, Wrought Copper, Domestic

The NIBCO® Press System® copper fitting reducer features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The fitting reducer has a press connection and a fitting end. The fitting provides a method to connect two lengths of tube.

Attributes

Connection TypeFitting x Press
Country Of OriginUS
Fitting/Connector TypeReducing Coupling
Nominal Size1-1/4 x 1 in
Domestic/ImportDomestic
MaterialWrought Copper
Pressure Class200 psi
SeriesPC600-2
Temperature Rating-20 to 250 deg F

Features

  • Dezincification resistant
  • Operating pressure 200 psi cwp
