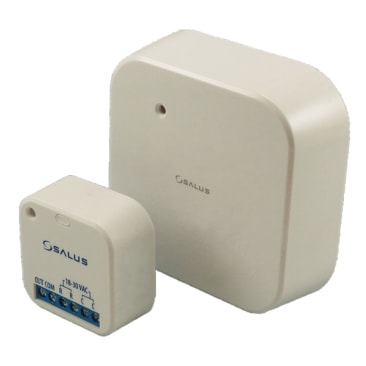

SALUS SC824ZB LOW VOLTAGE CONTACT RELAY
MFR Part #: SC824ZB
SKU #: 1243553
Brand: Salus
UPC: 817989023117
SALUS® SC824ZB Low Voltage Smart Relay, 18 to 30 VAC, 30 mA
5 Year Limited
FCC Approved | CE Certified | RoHS Compliant
Product Details
Attributes
Features
Resources
SALUS® Low Voltage Smart Relay, 18 to 30 VAC, 30 mA, 1.77 in Overall Length, 1.77 in Overall Width, 0.79 in Overall Height, For Use With: AWRT10RF Wireless Radiant Thermostat and SG888ZB Universal Gateway
Amperage Rating:30 mA
Overall Height:.79 in
Overall Length:1.77 in
Overall Width:1.77 in
Suitable For Use With:AWRT10RF Wireless Radiant Thermostat and SG888ZB Universal Gateway
Voltage Rating:18 to 30 VAC
- Cost effective low voltage switching relay wirelessly controls appliances or other devices from the SALUS® smart home application
- Simple user interface with a tactile switch and a multi-color LED
- Volt-free contact can be used for powered switching or as a dry contact
- Two sets of power terminals eliminate messy wiring
- Easy installation using wall mounting enclosure (included)
- Functions as a Zigbee router to expand network coverage
- Fall back states for loss of connections and power restoration
- Up to 3 A resistive load capacity
- May be configured to operate on a schedule or based on state changes of other devices on the SALUS® smart home network
- Configurable modes for recovery after power cycle and loss of communication
Product Details
SALUS® Low Voltage Smart Relay, 18 to 30 VAC, 30 mA, 1.77 in Overall Length, 1.77 in Overall Width, 0.79 in Overall Height, For Use With: AWRT10RF Wireless Radiant Thermostat and SG888ZB Universal Gateway
Attributes
Amperage Rating: 30 mA
Overall Height: .79 in
Overall Length: 1.77 in
Overall Width: 1.77 in
Suitable For Use With: AWRT10RF Wireless Radiant Thermostat and SG888ZB Universal Gateway
Voltage Rating: 18 to 30 VAC
Features
- Cost effective low voltage switching relay wirelessly controls appliances or other devices from the SALUS® smart home application
- Simple user interface with a tactile switch and a multi-color LED
- Volt-free contact can be used for powered switching or as a dry contact
- Two sets of power terminals eliminate messy wiring
- Easy installation using wall mounting enclosure (included)
- Functions as a Zigbee router to expand network coverage
- Fall back states for loss of connections and power restoration
- Up to 3 A resistive load capacity
- May be configured to operate on a schedule or based on state changes of other devices on the SALUS® smart home network
- Configurable modes for recovery after power cycle and loss of communication
