MIRCOM FS-400-WW WALL MOUNT STROBE WHITE
MFR Part #: FS-400-WW
SKU #: 1300327
Brand: Mircom™
UPC: 778346016510

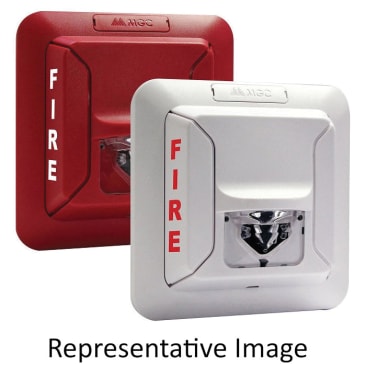

Mircom® 400 Series FS-400-WW LED Strobe, 24 V, LED Lamp, White, Wall Mounting
This product may be subject to ecological fees.
Shorting Clip and Universal Mounting Plate
Indoor Applications
FM Approved|NFPA 72|UL 1638/1971|ULC S526
Product Details
Attributes
Features
Resources
Mircom® LED Strobe, 400 Series, 24 V, LED Lamp, 1 Hz Flash, Wall Mounting, White, 32 to 122 deg F Operating Temperature, 4-27/32 in Length, 4-27/32 in Width, 1-61/64 in Height
Utilizing advanced LED technology, the FS-400 strobes provide a lower current draw which allows for more devices on a NAC circuit while reducing the number of external power supplies required.
Color:White
Flash Rate:1 Hz
Height:1-61/64 in
Lamp Type:LED
Length:4-27/32 in
Mounting Type:Wall
Operating Temperature:32 to 122 deg F
Series:400 Series
Voltage Rating:24 V
Width:4-27/32 in
- Compact Design
- Advanced LED technology provides superior current draw performance
- Standard and High candela settings in one unit to meet virtually any application - 15, 15/75, 30, 75, 110, 185 cd
- Device settings are located on the back of the unit to prevent tampering
- Enhance emergency communication with white models featuring "Alert" labels
- Can be synchronized using a FACP with the MGC protocol or the MIX-4050 synchronization module
- Wall mount Only
- Includes shorting clip that allows installers to test the wiring before the device is installed
- Mount to MGC BB-400 surface mount back box, single gang, 4-inch square, double gang, octagon and 4-inch junction boxes
- All units include universal mounting plate
- Red or white finish
- Supports 12 to 22 AWG
- For indoor applications
Product Details
Mircom® LED Strobe, 400 Series, 24 V, LED Lamp, 1 Hz Flash, Wall Mounting, White, 32 to 122 deg F Operating Temperature, 4-27/32 in Length, 4-27/32 in Width, 1-61/64 in Height
Utilizing advanced LED technology, the FS-400 strobes provide a lower current draw which allows for more devices on a NAC circuit while reducing the number of external power supplies required.
Attributes
Color: White
Flash Rate: 1 Hz
Height: 1-61/64 in
Lamp Type: LED
Length: 4-27/32 in
Mounting Type: Wall
Operating Temperature: 32 to 122 deg F
Series: 400 Series
Voltage Rating: 24 V
Width: 4-27/32 in
Features
- Compact Design
- Advanced LED technology provides superior current draw performance
- Standard and High candela settings in one unit to meet virtually any application - 15, 15/75, 30, 75, 110, 185 cd
- Device settings are located on the back of the unit to prevent tampering
- Enhance emergency communication with white models featuring "Alert" labels
- Can be synchronized using a FACP with the MGC protocol or the MIX-4050 synchronization module
- Wall mount Only
- Includes shorting clip that allows installers to test the wiring before the device is installed
- Mount to MGC BB-400 surface mount back box, single gang, 4-inch square, double gang, octagon and 4-inch junction boxes
- All units include universal mounting plate
- Red or white finish
- Supports 12 to 22 AWG
- For indoor applications
