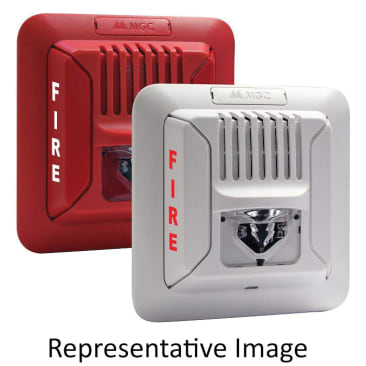

MIRCOM FHS-400-RR WALL MOUNT HORN/STROBE RED
Product Details
Attributes
Features
Resources
Mircom® Horn/Strobe, FHS-400 Series, 24 V, 520 Hz, Indoor, Specifications Met: FM Approved|NFPA 72|UL 1638/1971/464|ULC S525/S526, Wall Mounting, Red, 32 to 122 deg F, 4-27/32 in Length, 4-27/32 in Width, 1-61/64 in Height
Utilizing advanced LED technology, the FHS-400 Horn/Strobes provide a lower current draw which allows for more devices on a NAC circuit while reducing the number of external power supplies required.
- Compact Design
- Advanced LED technology provides superior current draw performance
- Standard and High candela settings in one unit to meet virtually any application - 15, 15/75, 30, 75, 110, 185 cd
- Multiple field-selectable audible settings - Temporal, Continuous, March Time and 20 BPM, High and Low volume
- Device settings are located on the back of the unit to prevent tampering
- Enhance emergency communication with white models featuring "Alert" labels
- Can be synchronized using a FACP with the MGC protocol or the MIX-4050 synchronization module
- Wall mount Only
- Includes shorting clip that allows installers to test the wiring before the device is installed
- Mount to MGC BB-400 surface mount back box, single gang, 4-inch square, double gang, octagon and 4-inch junction boxes
- All units include universal mounting plate
- Red or white finish
- Supports 12 to 22 AWG
- For indoor applications
Product Details
Mircom® Horn/Strobe, FHS-400 Series, 24 V, 520 Hz, Indoor, Specifications Met: FM Approved|NFPA 72|UL 1638/1971/464|ULC S525/S526, Wall Mounting, Red, 32 to 122 deg F, 4-27/32 in Length, 4-27/32 in Width, 1-61/64 in Height
Utilizing advanced LED technology, the FHS-400 Horn/Strobes provide a lower current draw which allows for more devices on a NAC circuit while reducing the number of external power supplies required.
Attributes
Features
- Compact Design
- Advanced LED technology provides superior current draw performance
- Standard and High candela settings in one unit to meet virtually any application - 15, 15/75, 30, 75, 110, 185 cd
- Multiple field-selectable audible settings - Temporal, Continuous, March Time and 20 BPM, High and Low volume
- Device settings are located on the back of the unit to prevent tampering
- Enhance emergency communication with white models featuring "Alert" labels
- Can be synchronized using a FACP with the MGC protocol or the MIX-4050 synchronization module
- Wall mount Only
- Includes shorting clip that allows installers to test the wiring before the device is installed
- Mount to MGC BB-400 surface mount back box, single gang, 4-inch square, double gang, octagon and 4-inch junction boxes
- All units include universal mounting plate
- Red or white finish
- Supports 12 to 22 AWG
- For indoor applications
